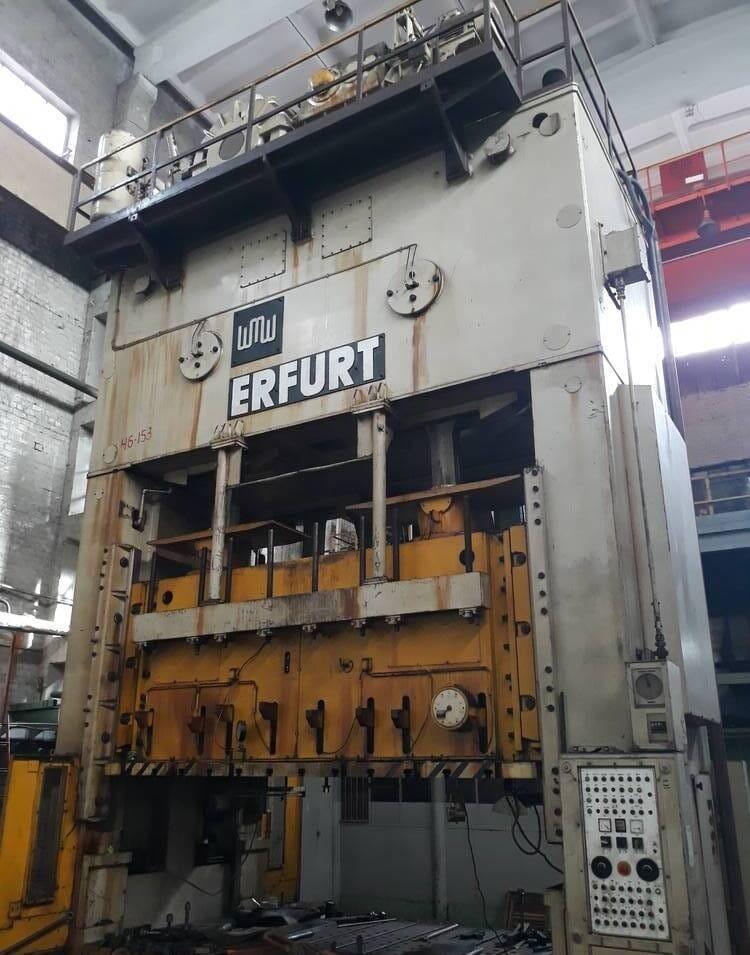

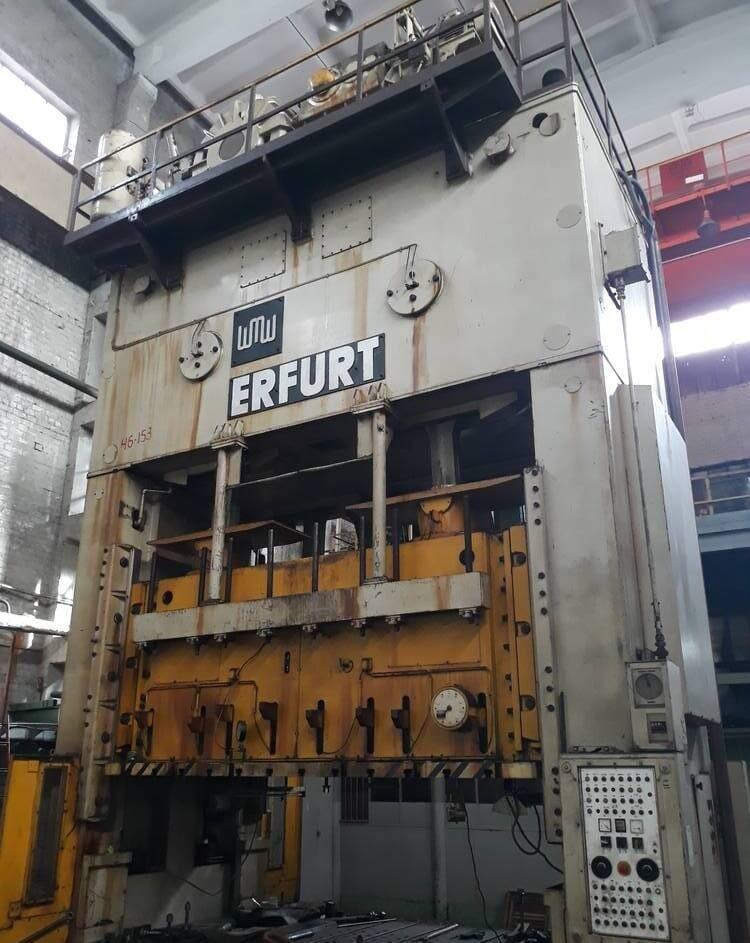

800 Ton Single Action Erfurt Press

Brand
ERFURT

Model

Stock #
501586

Condition
Used

Year
1986

Location
City Not Specified, State Not Specified
Ukraine

Tonnage 800 tons
Bed Size 4000 x 2500 mm

Equipped With

Max. force of slide: 800 tons
Stroke of slide: 500 mm
Adjustability of slide: 500 mm
Max. daylight between bolster and slide (SDAU): 1200 mm
Width between columns: 4000 mm
Slide area (WxD): 4000x2500 mm
Bed area (WxD): 4000x2500 mm
Opening in bed (WxD): 3520x1520 mm
Moving table height: 630 mm
Main motor power: 90 kW
Idle stroke rate per 1 min: 14
Counterpressure of cushion in bed: 160 tons
Stroke of cushion plate: 200 mm
Height above ground: 8400 mm
Press weight: 210000 kg
Cushion: Yes
