Condition: New
Year: 2023
Bolster Area: 580 x 900 mm / 22.83'' x 35.43''
Slide Area: 400 x 480 mm / 15.75'' x 18.99''
Stroke: 120 mm / 4.72''
Adjustment: 80 mm / 3.15''
Max. die height: 300 mm / 11.81''
Main motor power: 5.5 kW
Speed: 70 SPM

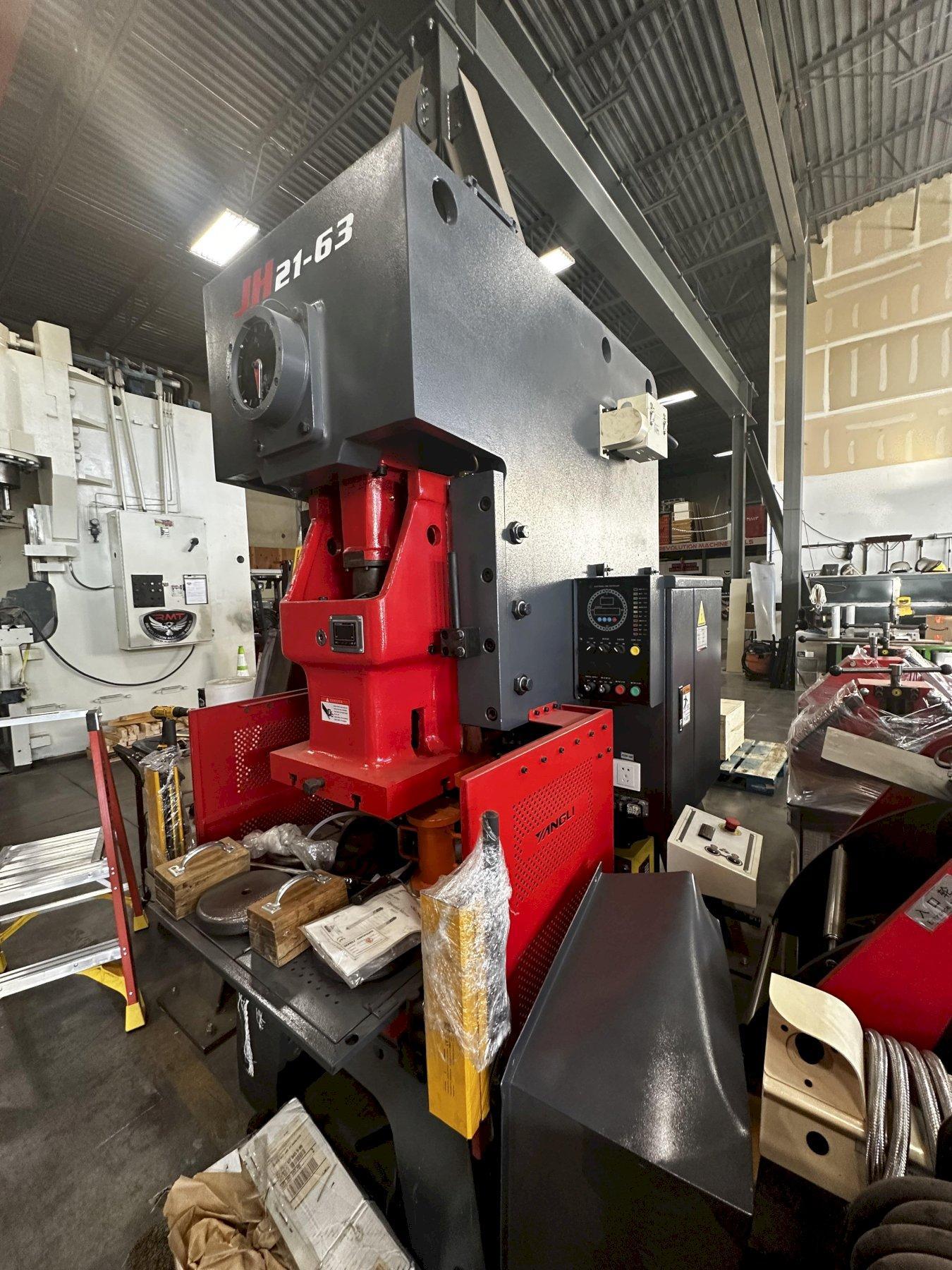

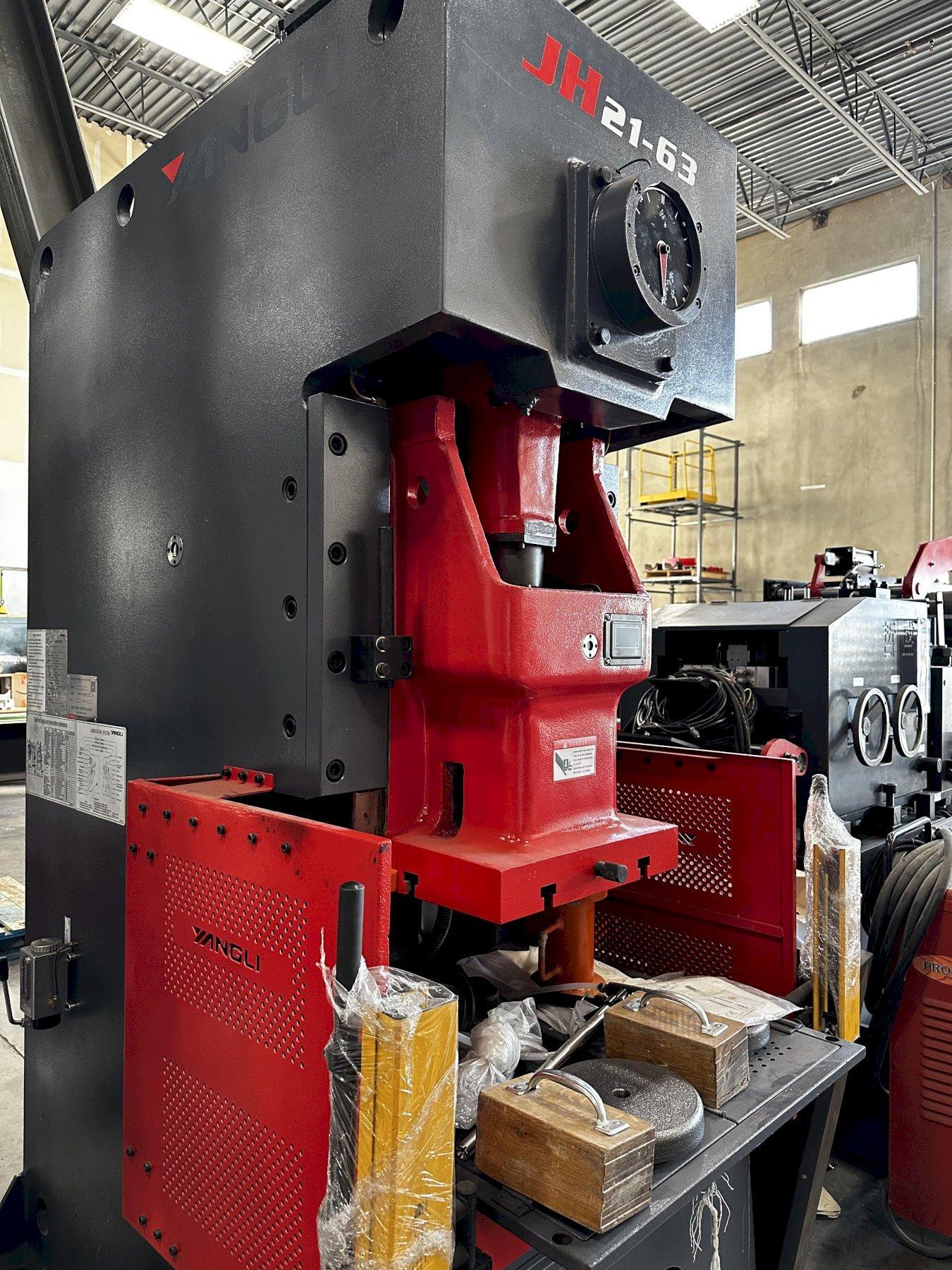

Press Equipped with:
Electrical die height adjustment with digital display
Steel welded frame with high intensity
Main motor: SIEMENS
Dry pneumatic friction clutch and brake

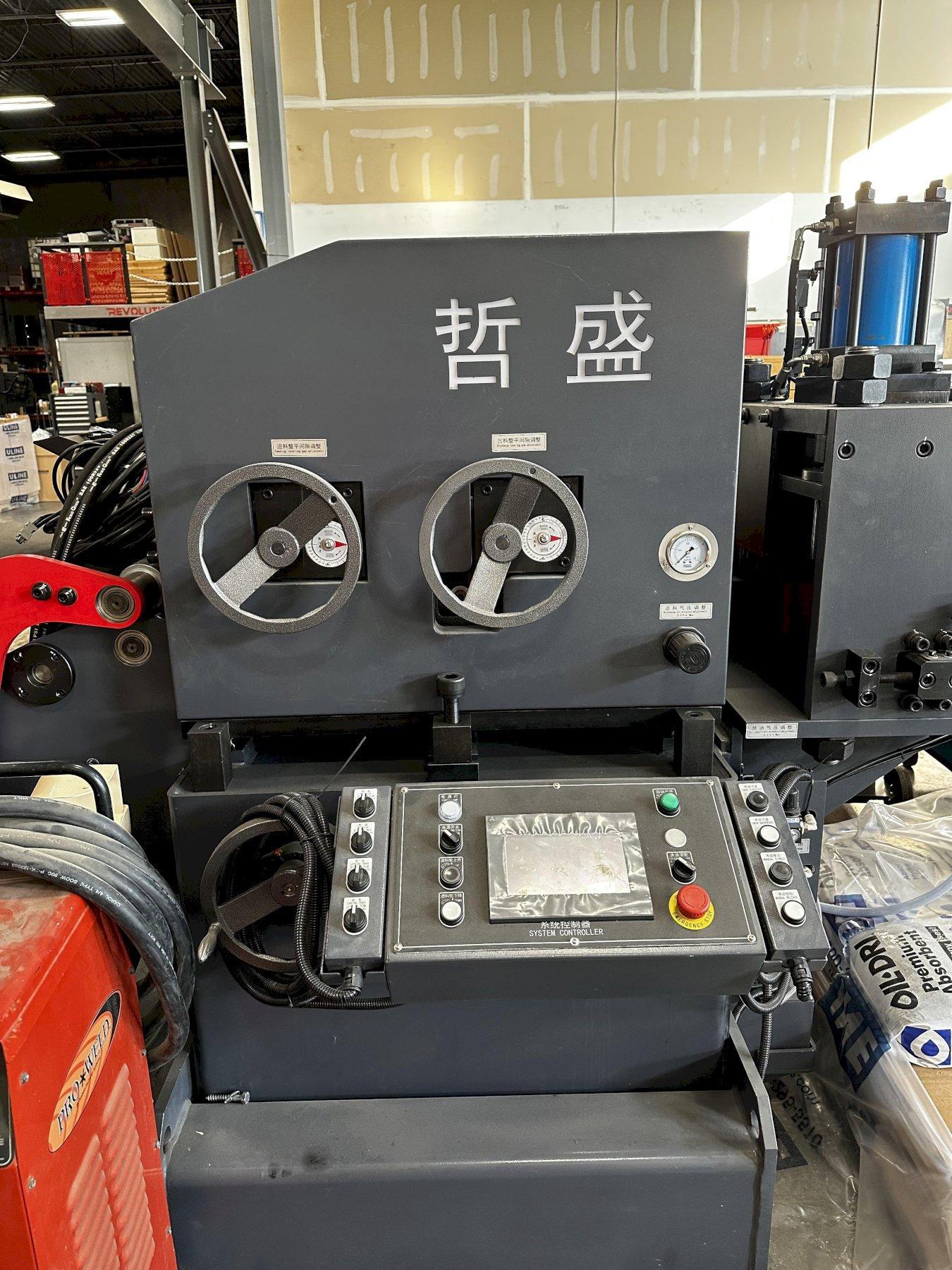

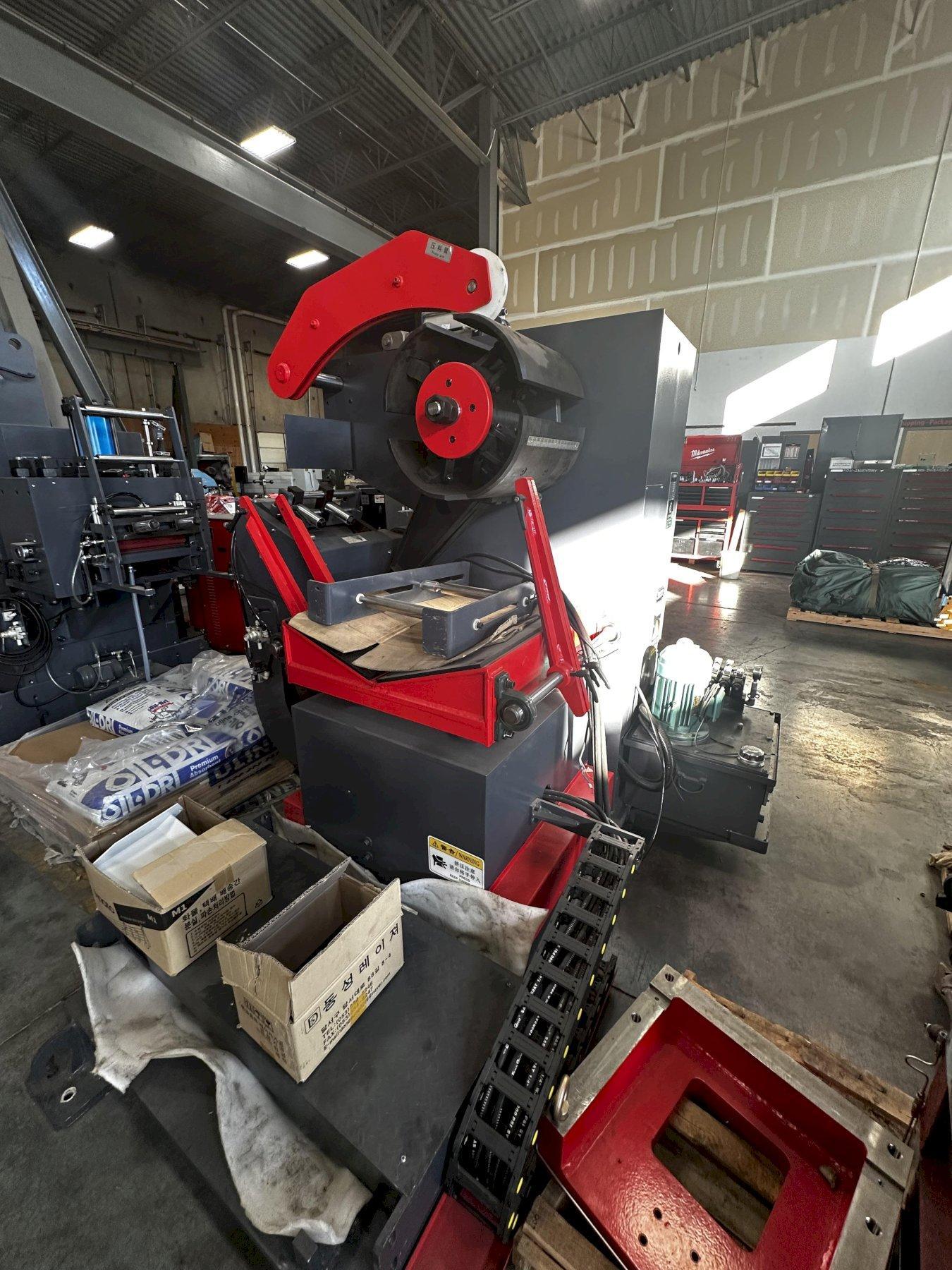

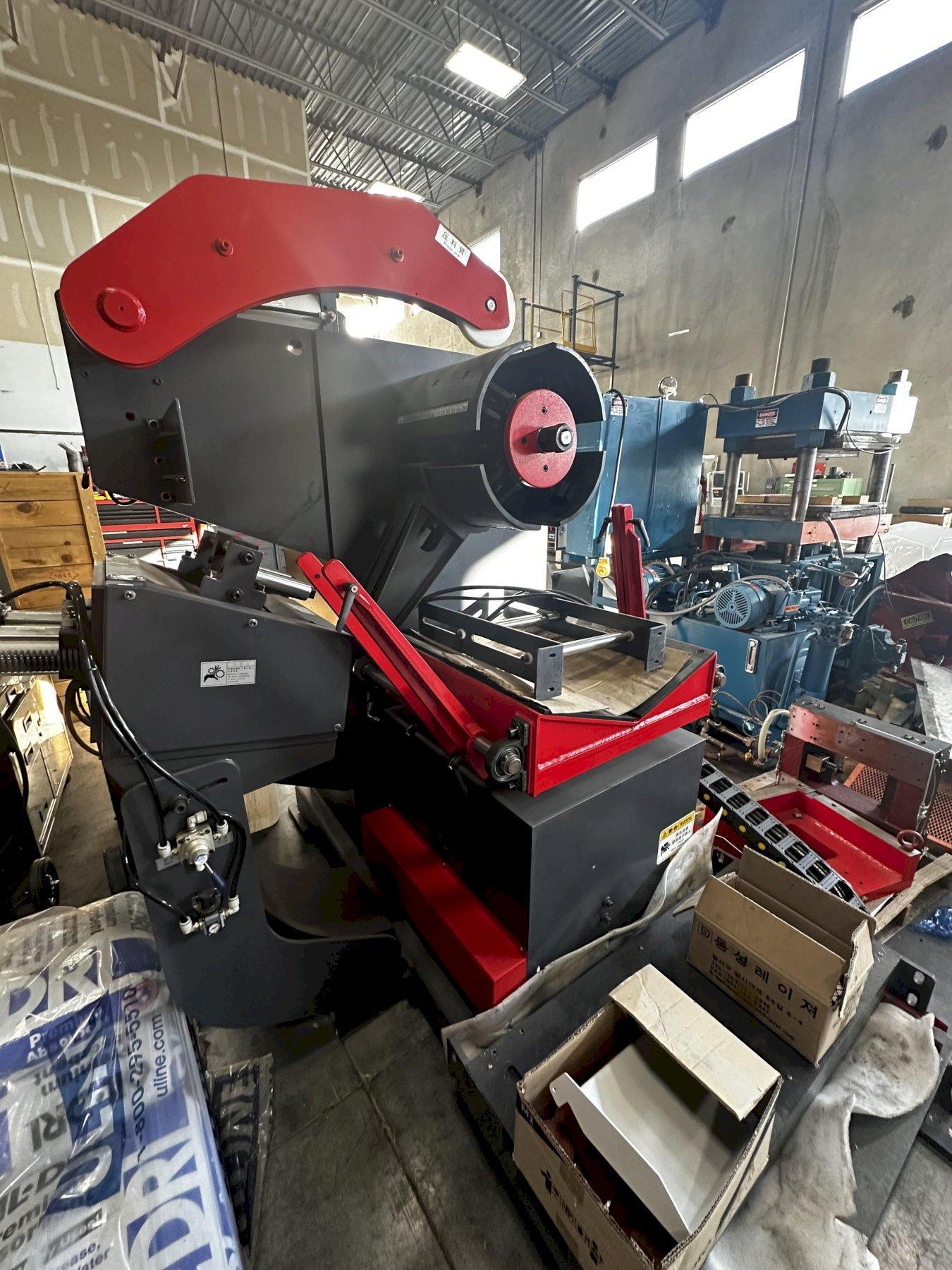

Coil Feedline:
Coil ID: 18"-20", Coil OD: 47"
Coil weight:6,600 lb.
Feeding direction: left to right

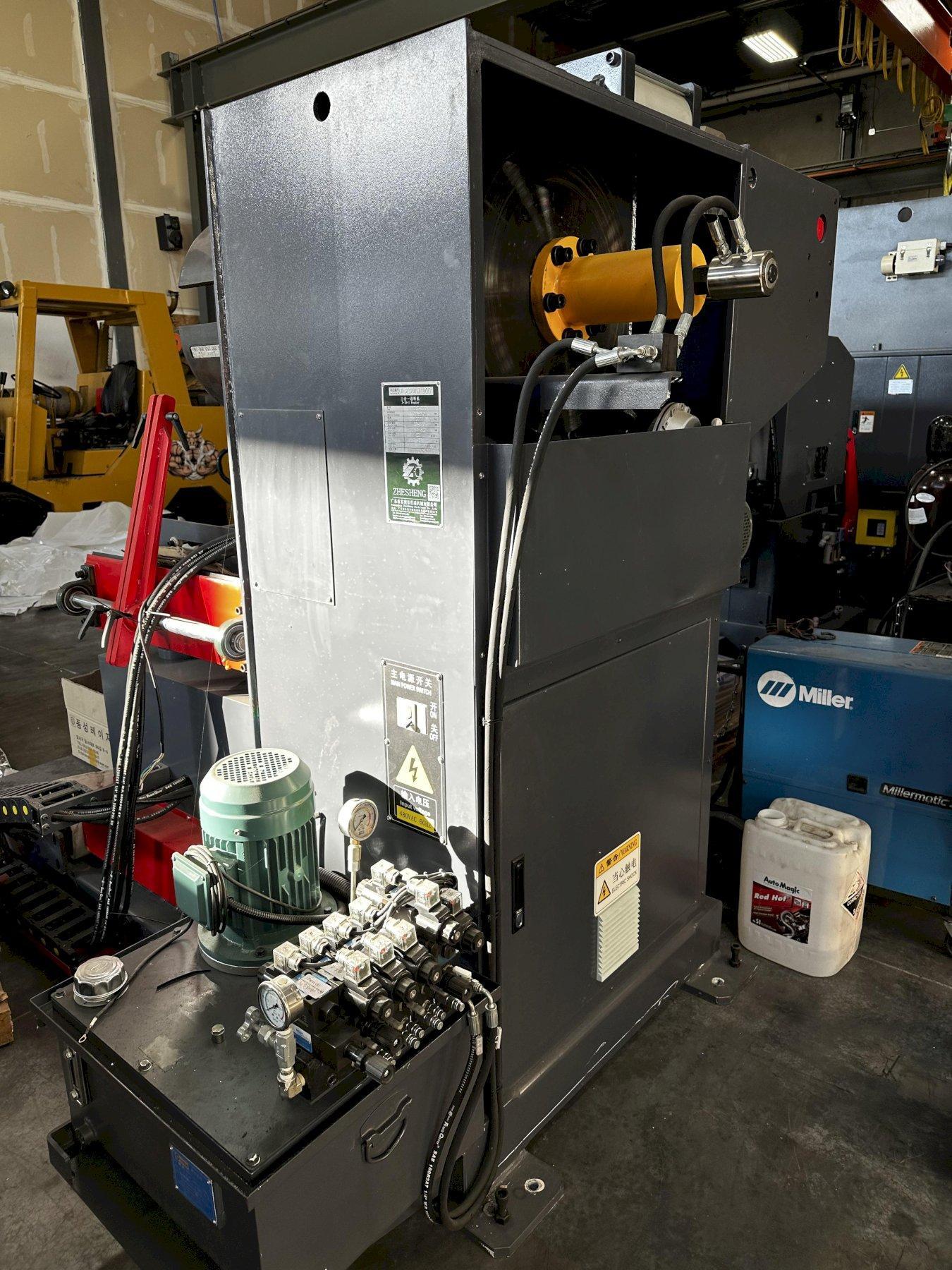

Hydraulic Cutting
Automatic Lubrication
Material: Cold-rolled plate, pickling plate, galvanized plate, stainless steel plate, aluminum alloy, hot-rolled plate
Material width:.78" - 11.8"
