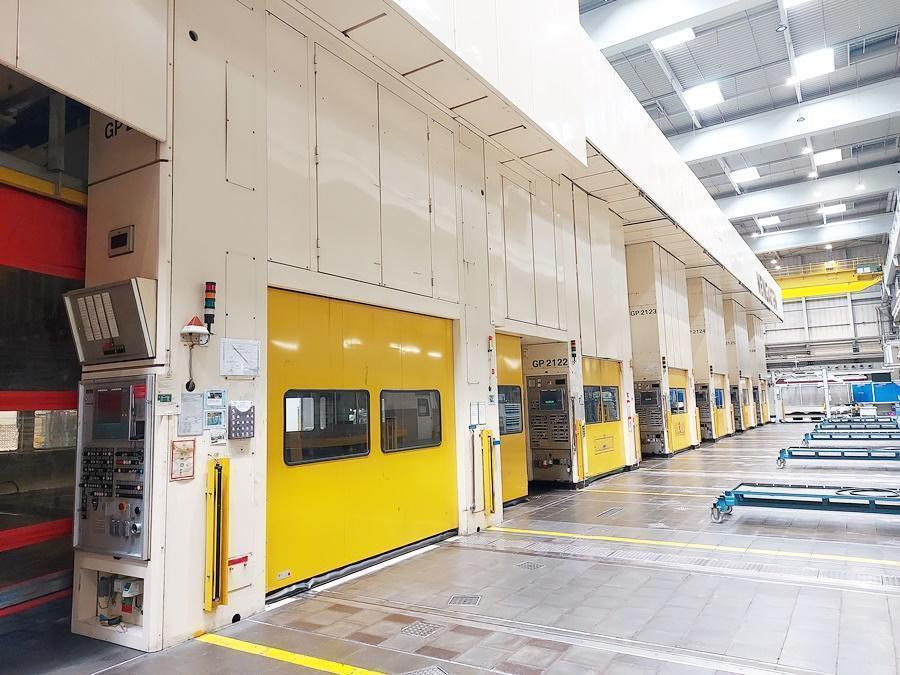

Mueller Weingarten Tandem Line 2000-1000-1000-1000-1000-1000

Model

Stock #
501687

Condition
Used

Year

Location
City Not Specified, State Not Specified

Tonnage 2000 tons
Bed Size 5000 mm x 2500 mm

Equipped With

2000T-1000T-1000T-1000T-1000T-1000T

Lead Press Manufacturer: Mueller Weingarten
Capacity: 2000 Tons Slide: 5000 x 2500mm (196’’x 98’’)
Bolster: 5000 x 2500mm (196’’x 98’’)
Stroke: 1100mm (43’’)
Adjustment: 300mm (12’’)
Shut Height: 1645mm (65’’)
Speed: 16 SPM
Notes: Hydraulic Cushion in Bed
-Cushion Capacity: 80 - 500 Tons
- Cushion Stroke: 100 - 400mm (4’’-16’’)
-Window size: 2500mm (98’’)
-Side moving bolster for die loading


1000 Ton Schuler Presses (5 Available):
Press force Slide @ 20mm before BDC 10000 KN
Working capacity Slide at 8 strokes/min 350 kj
Slide stroke 900mm
MAX. Draw Depth Slide 200mm
Slide Adjustment 250mm
Air Cushion in Slide/Cushion force @ 8.5 bar 1000 KN
Cushion stroke 200mm
Die Space Bolster – Slide in BDC and Adjustment on top 1400mm
Bolster Height 544mm
Strokes per minute, adjustable 8 – 20
Strokes per minute in Setting mode 3
Dimensions Bolster Plate 4600 X 2200mm
Dimensions Slide Plate 4600 X 2200mm
Dimensions Slide Adapter Plate 4000 X 2200mm
Air Cushion in Press bed/Cushion Force @ 9 bar MAX. 2000 KN
Adjustable Cushion Stroke 0 – 200mm
Main Drive Motor Power 90 – 225 kW
RPM 720 – 1800 U/min

Equipped with side to side moving bolsters, no lower cushion
