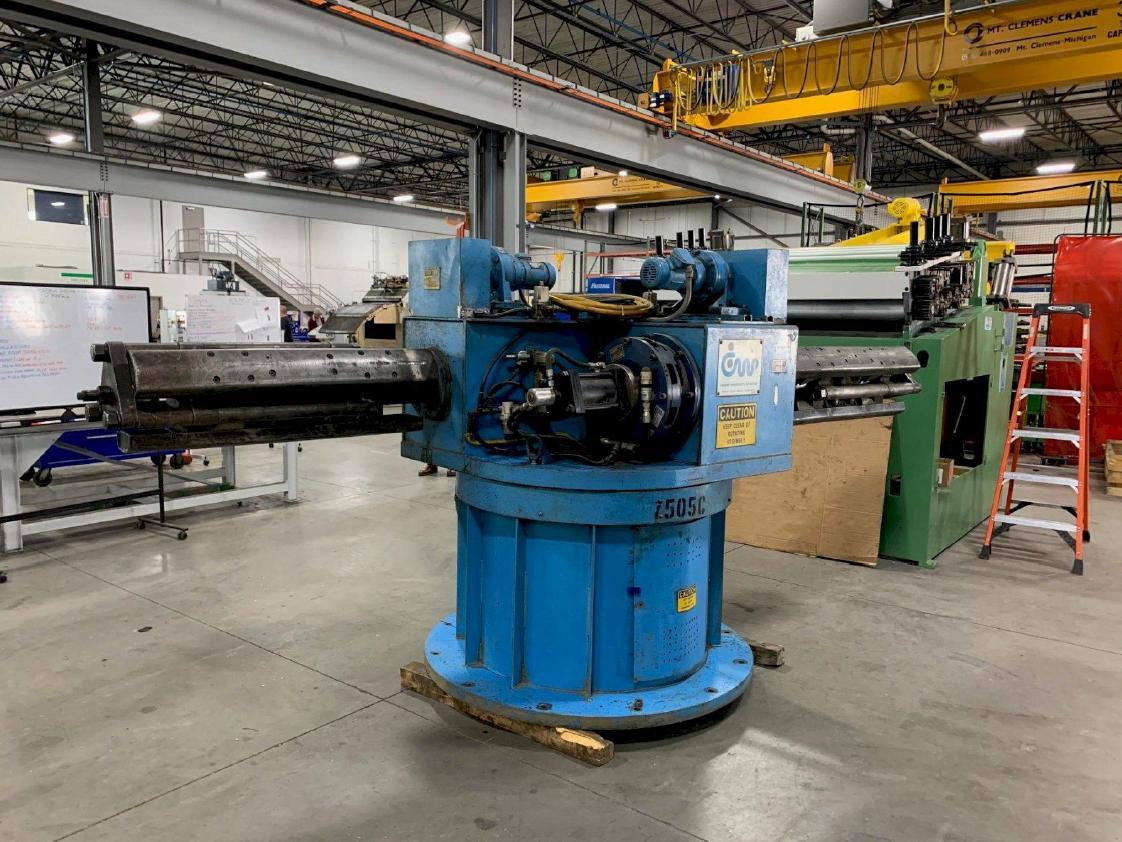

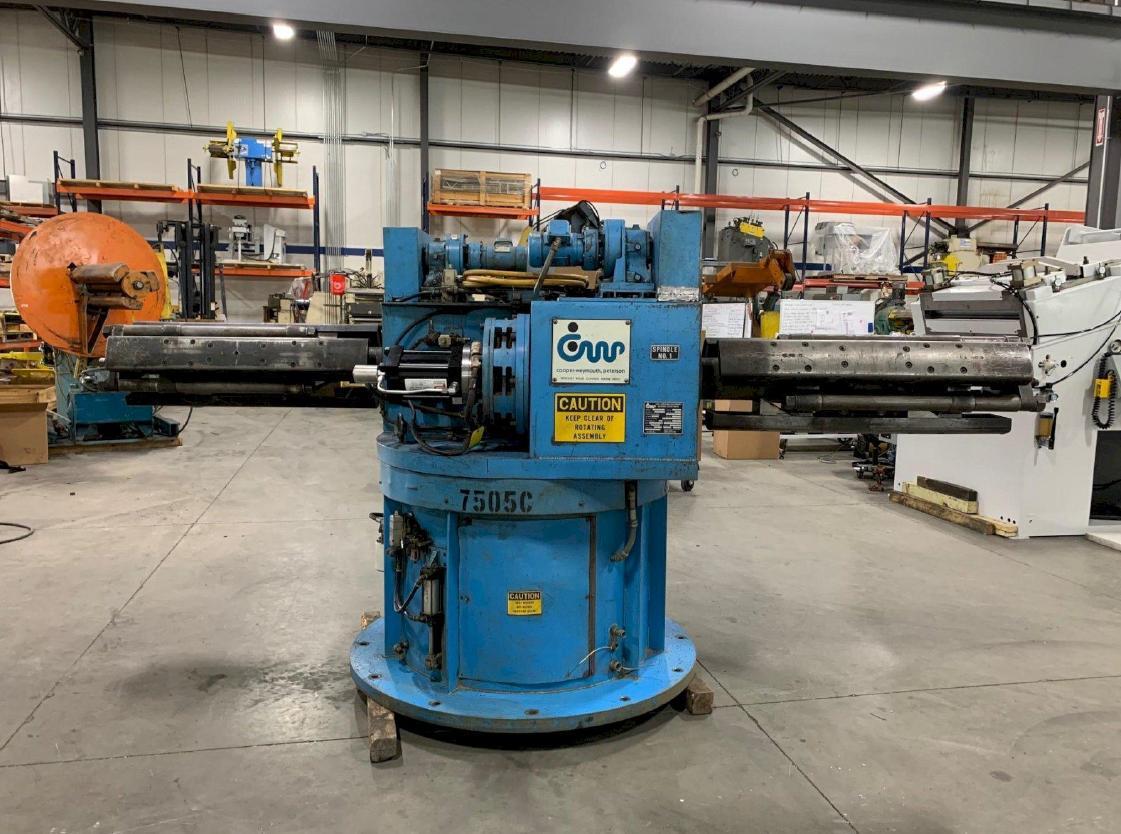

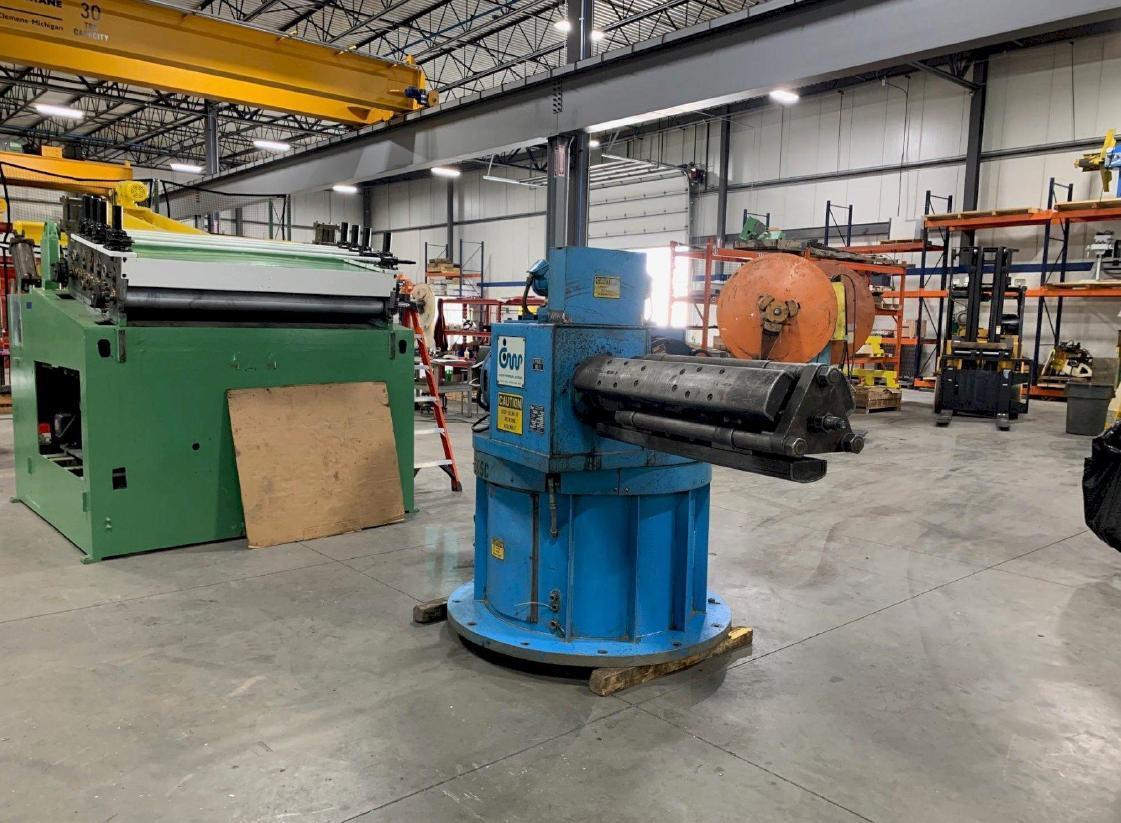

CWP Double End Coil Reel 20,000 Lbs.
Coil weight capacity: 20,000 Lbs. (per side)
Coil width capacity: 36"
Expansion range: 15.5" - 20.5"
Coil OD: 60"
CWP Double End Coil Reel Uncoiler Model No.: 6RD36
Three leaf mandrel coil reel (per side)
Coil reel keeper arms
Hydraulic coil reel mandrel expansion
Threading drive for jog forward and reverse

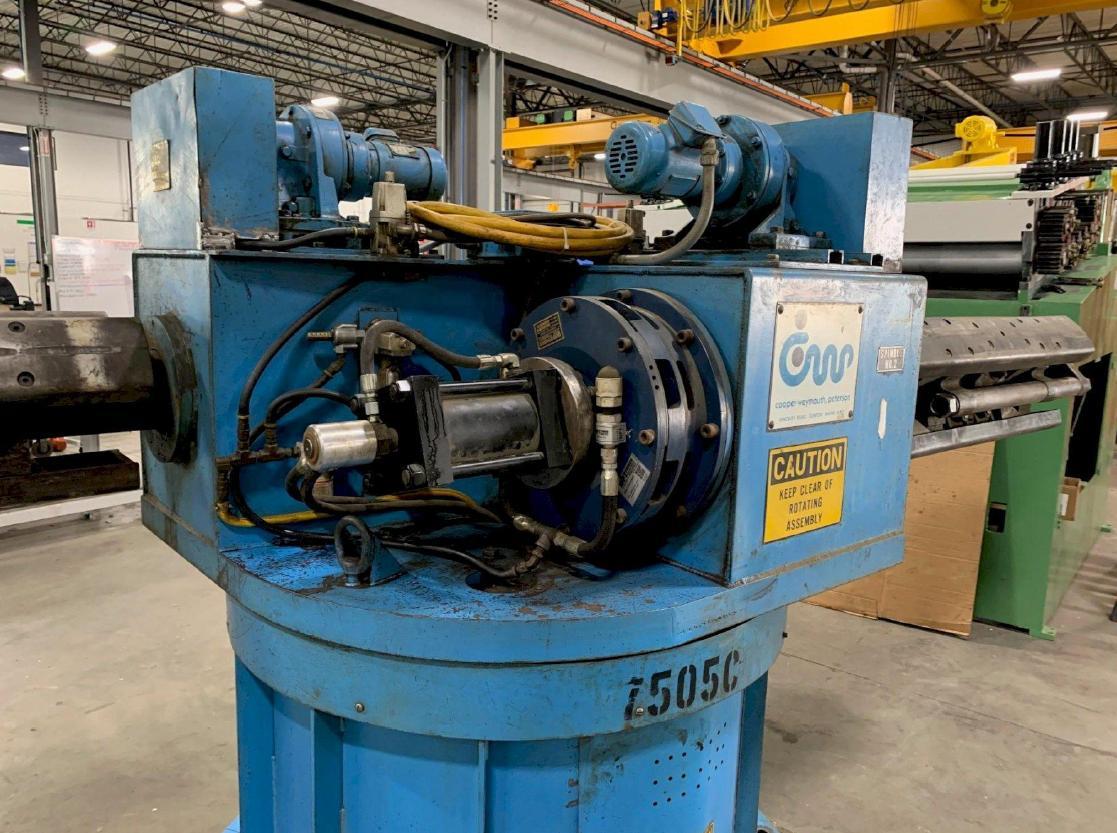

Threading drives with AC Motor / Gearhead and air clutch
Powered rotation / indexing of main spindle deck
Pneumatic drag brake mounted on main coil reel spindles
Adjustable tensioning
Control panel required
Floor to centerline height of mandrel spindle 48"
