Highlights

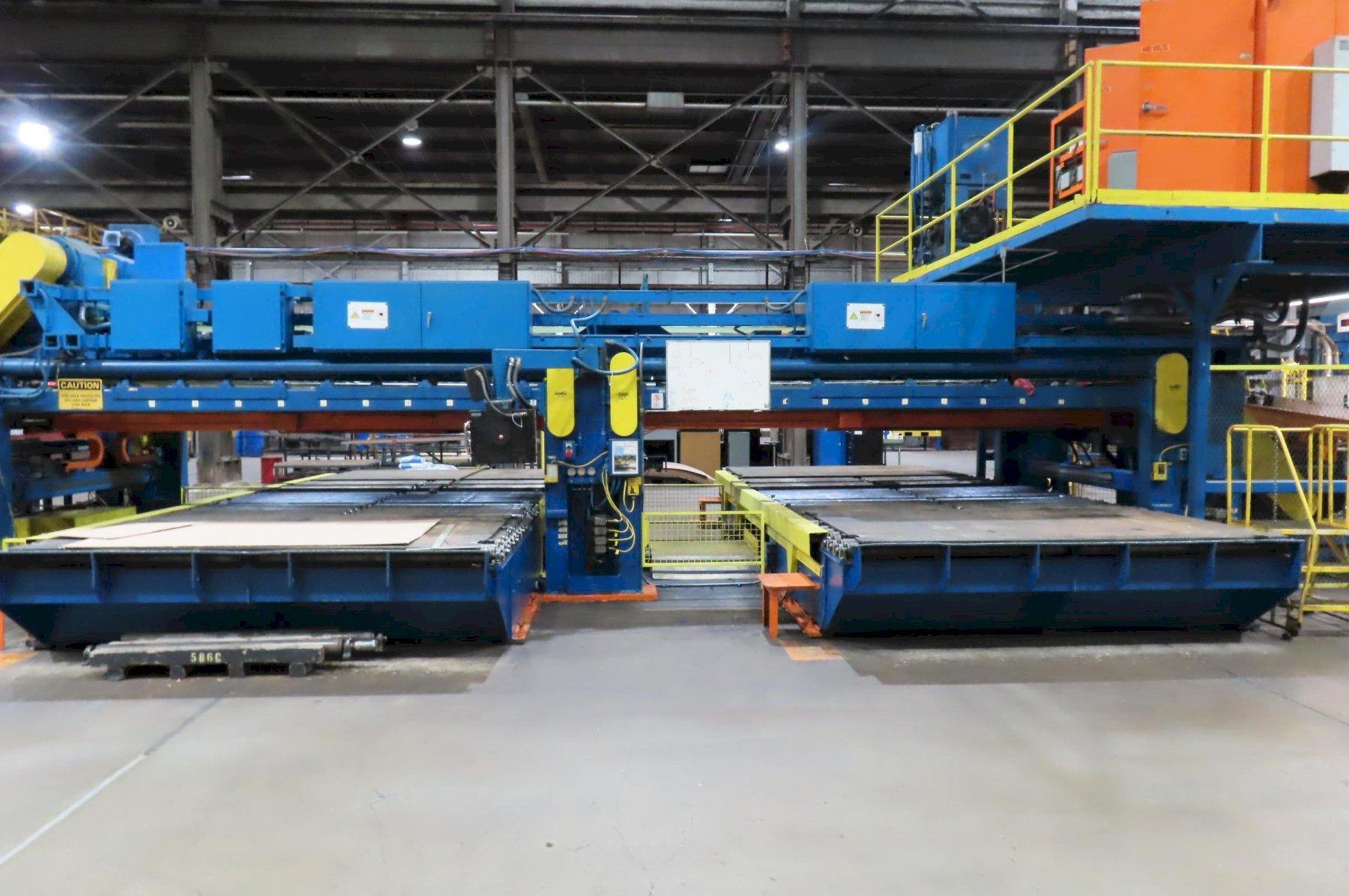

AFCO STACKING SYSTEM - EOL
Blank Length Range: 18”-180”
Max Stack Weight: 20,000#
Max Stack Height with Pallet: 25”
2 Station Stacker System
Floor Mounted Stacker Carts (no foundation)
Reject Station.
Blank Length Range: 18”-180”
Max Stack Weight: 20,000#
Max Stack Height with Pallet: 25”
2 Station Stacker System
Floor Mounted Stacker Carts (no foundation)
Reject Station.
Overview
- Make
- AFCO
- Type
- Coil Feed Lines
- Condition
- Used
- Stock #
- 501927
Spec Sheet

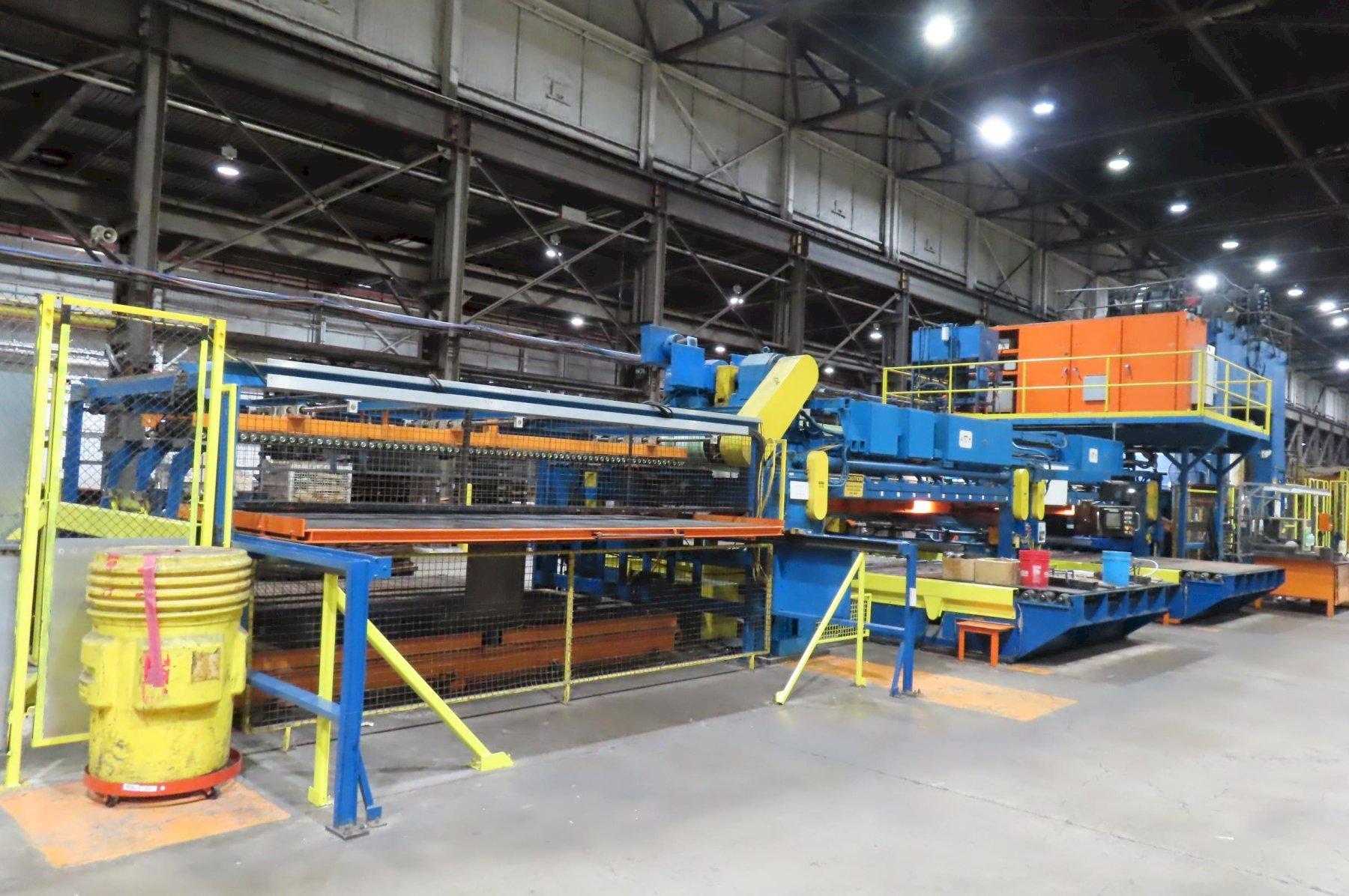

AFCO Coil Line Specifications:
Coil Line Specifications:
Coil Weight: 35 MT
Coil O.D.: 750-2000 mm
Coil O.D.: 750-2000 mm
Coil I.D.: 610 mm-630 mm
Feed Length: 0-458 mm
Feed Angle: Variable, 90-300 degrees, die dependent
Strokes Per Minute: Variable, 10-40 SPM
Pass Line Height: 1350 mm, optional 102 mm adjustment

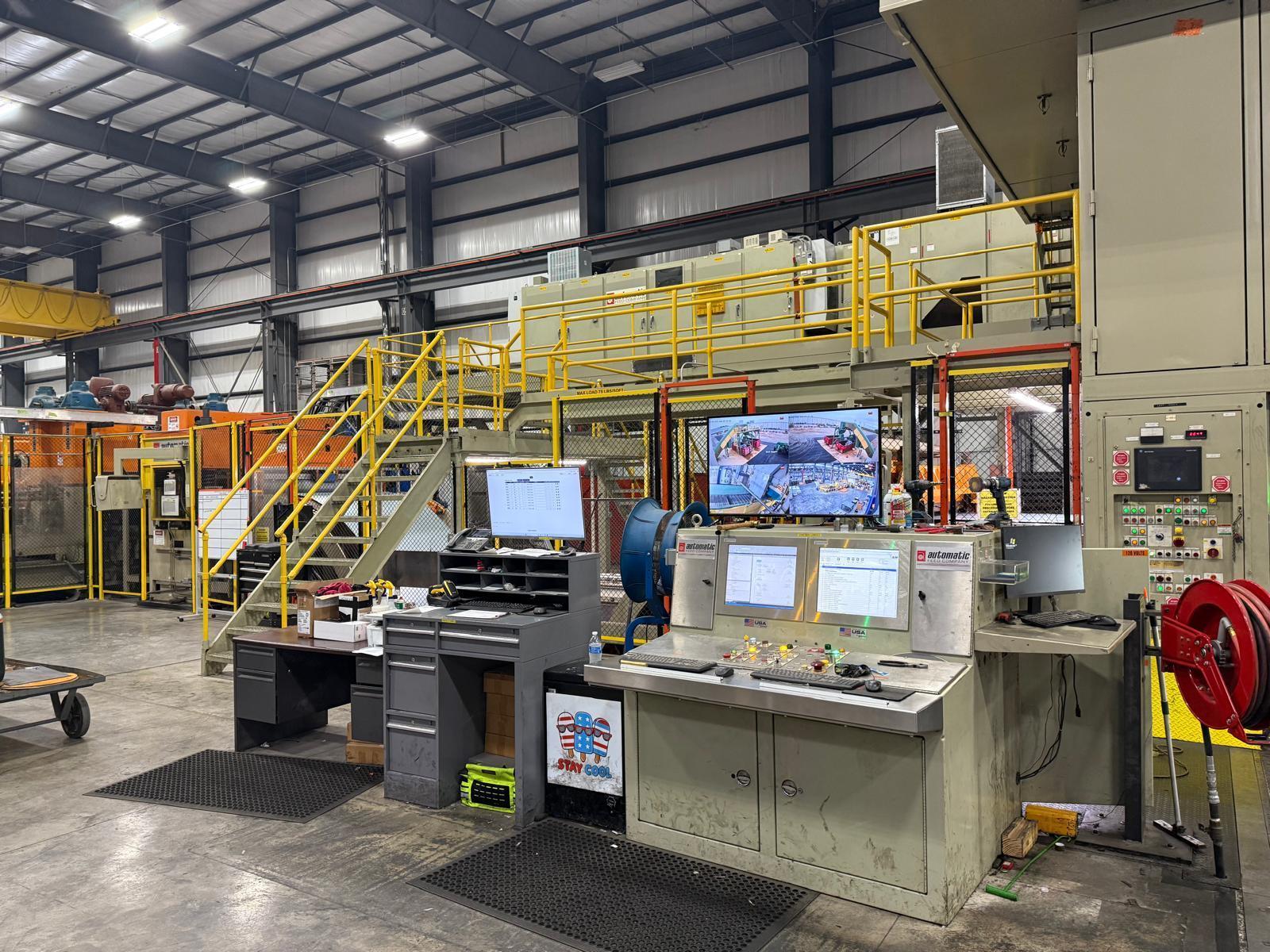

Control System -
Drive System: Unico
PLC: Allen Bradley
Operator Interface: IBM, Wonderware
Line Speed: 98 fpm (30 mpm)
Line direction: left to right

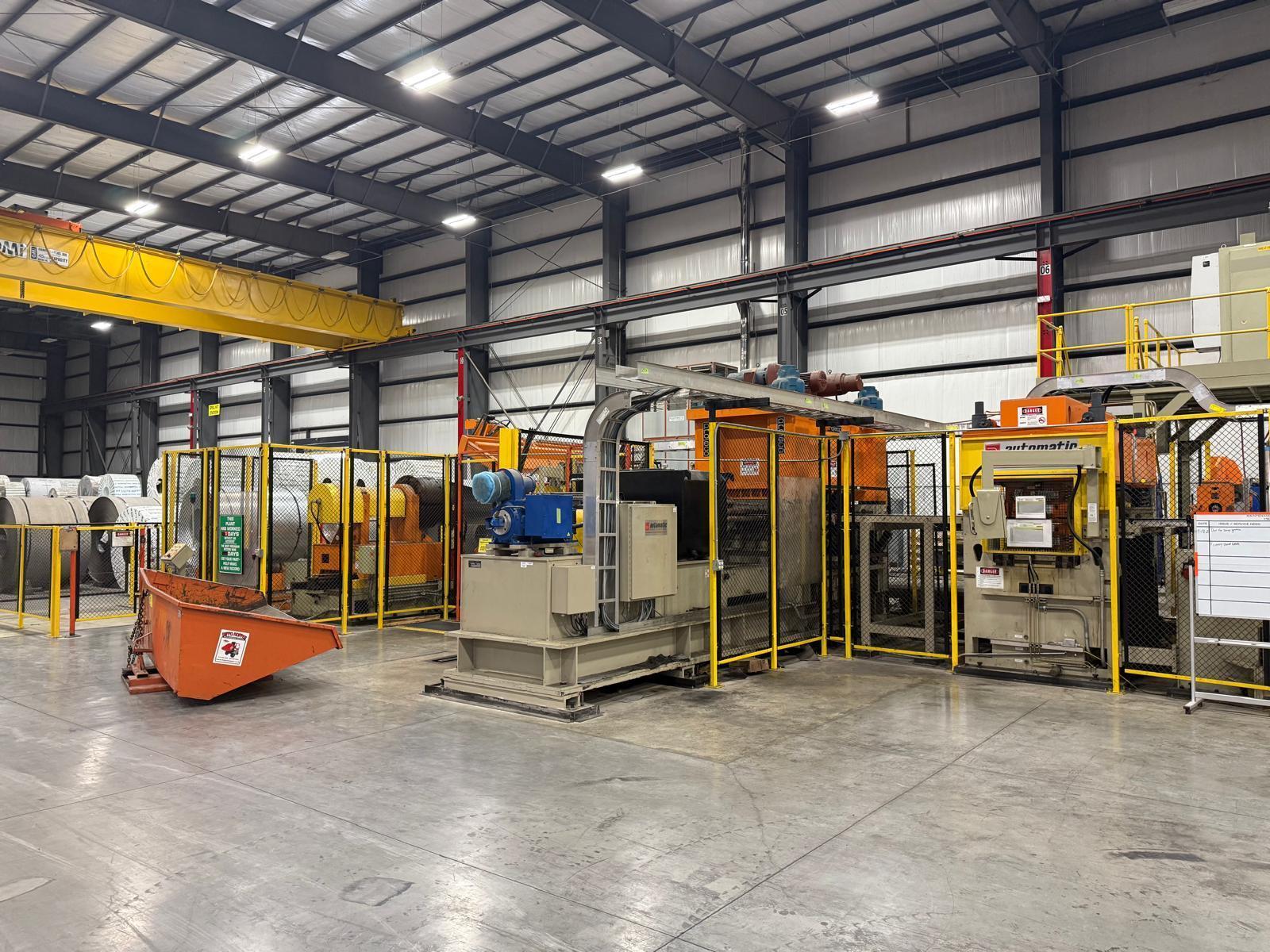

Front of Line Consists of:
- Manufacturer: AFCO
- Coil Shuttle: 35 MT x 2000 mm wide
-
Uncoiler: 35 MT x 2000 mm wide
- Double Stub Mandrel
- Peeler
- Entry Pinch Roll
- Crop Shear #1
- HSS 50 MM LEVELER
- 13 Roll Leveler
- 6 High Backups
- Loop Thread Table
- Roll Feed
- Crop Shear #2
- Scrap Chopper
- Die Thread Table
- Exit Pull Rolls
- Hydraulic System
- Line Time
End of Line Consists of: Automatic Feed (2) Station Stacker 170"
Mild & High Strength Steel Either with Mill Oil, Pre-lube, Electroplated, or Hot Dipped Zinc Coatings.
- Thickness of Material: 0.5 mm - 3.0 mm
