Overview
- Make
- AFCO
- Model
- 170" Stacker
- Type
- Coil Feed Lines
- Condition
- Used
- Stock #
- 502061
Specifications
- Max Weight of Coil
- 75000 pounds
- Max Coil Width Capacity
- 76 inches
- Max Stock Thickness Capacity At Full Width
- .100 inches
Spec Sheet
Coil Line Specifications:

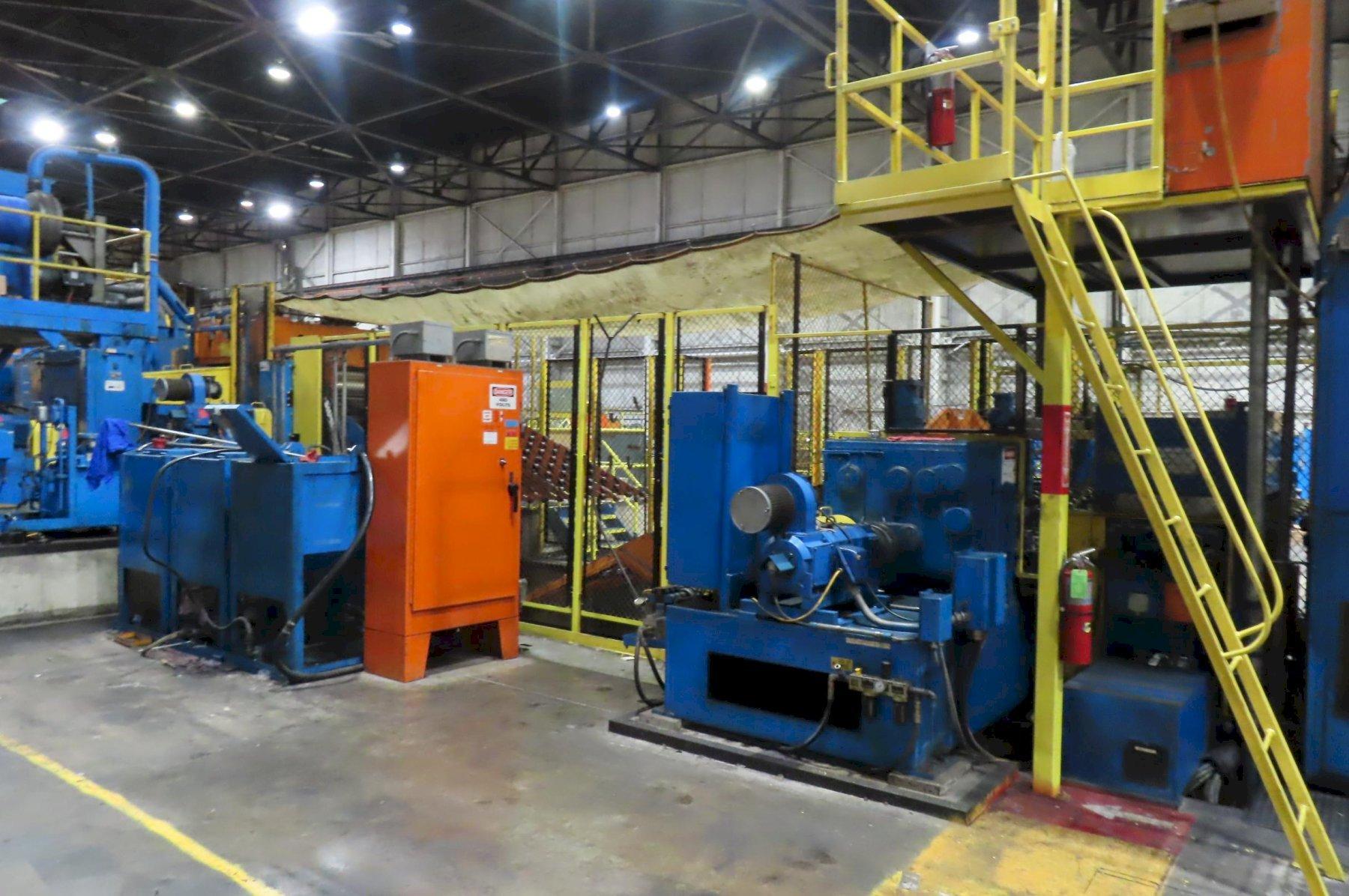

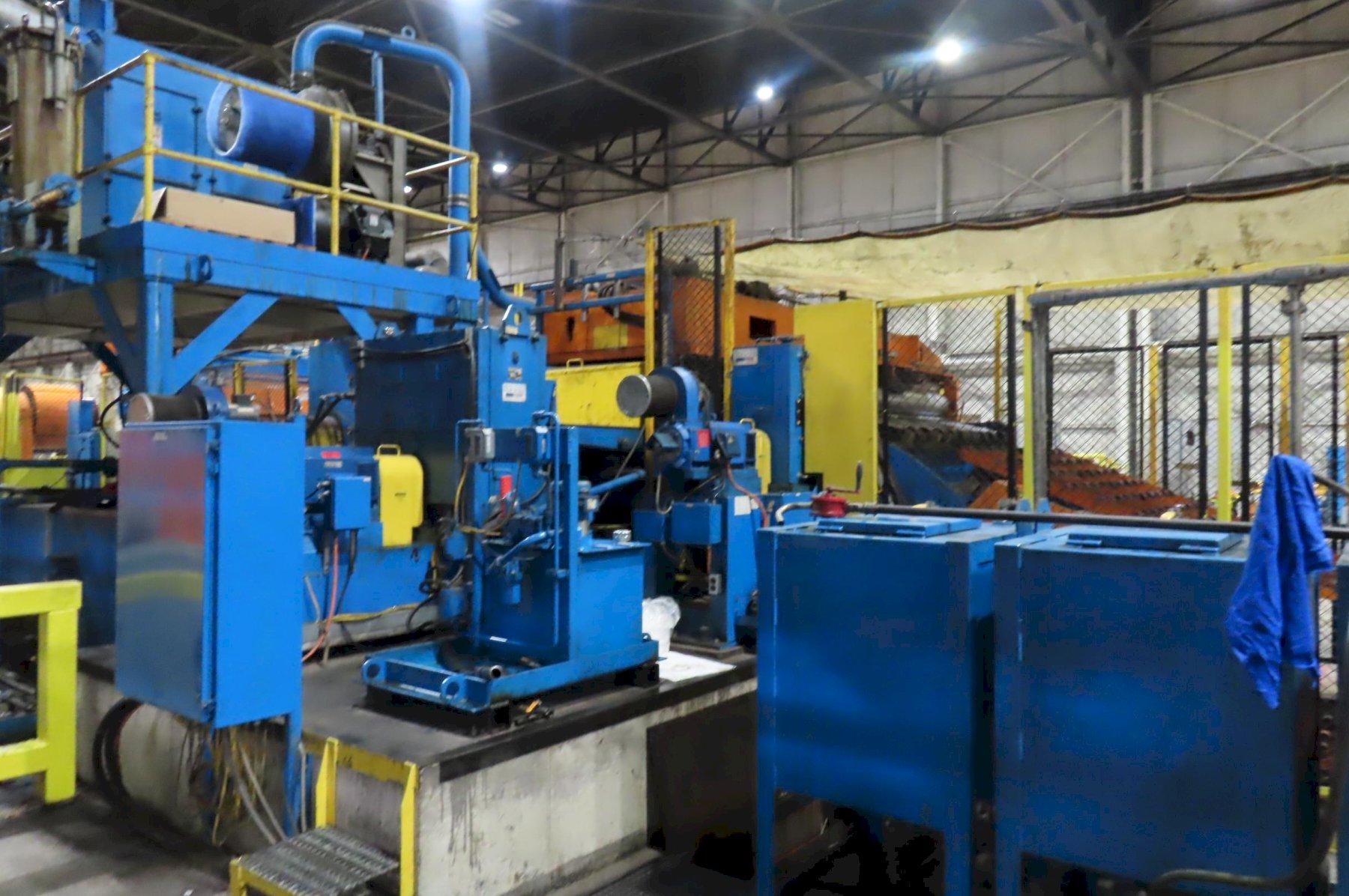

76" Wide (2000 mm) X 75,000 LBS (35 MT) X .100" Automatic Feed (AFCO)
Line Specifications
Coil Width: 24" to 76"
Coil Weight: 75,000 LBS 30 MT
Coil O.D.: 30" to 80"
Coil I.D.: 22" to 26" (24" with no pads)
Coil Thickness: .020" to 100"
Strokes Per Minute: Variable, 50 SPM
Line Speed: 300 FPM
AFCO FEEDLINE COMPONENTS (FOL)
• Coil Shuttle:
• Uncoiler:
o Double Stub Mandrel
• Peeler
• Entry Pinch Roll
• Crop Shear #1
• AFCO Washer
• AFCO HSS 50 MM (2") LEVELER
o Cassette Leveller
o Roll Diameter 76" x 2" (50 mm)
o 13 Roll Leveler o 6 High Backups
• Loop Thread Table
• Roll Feed

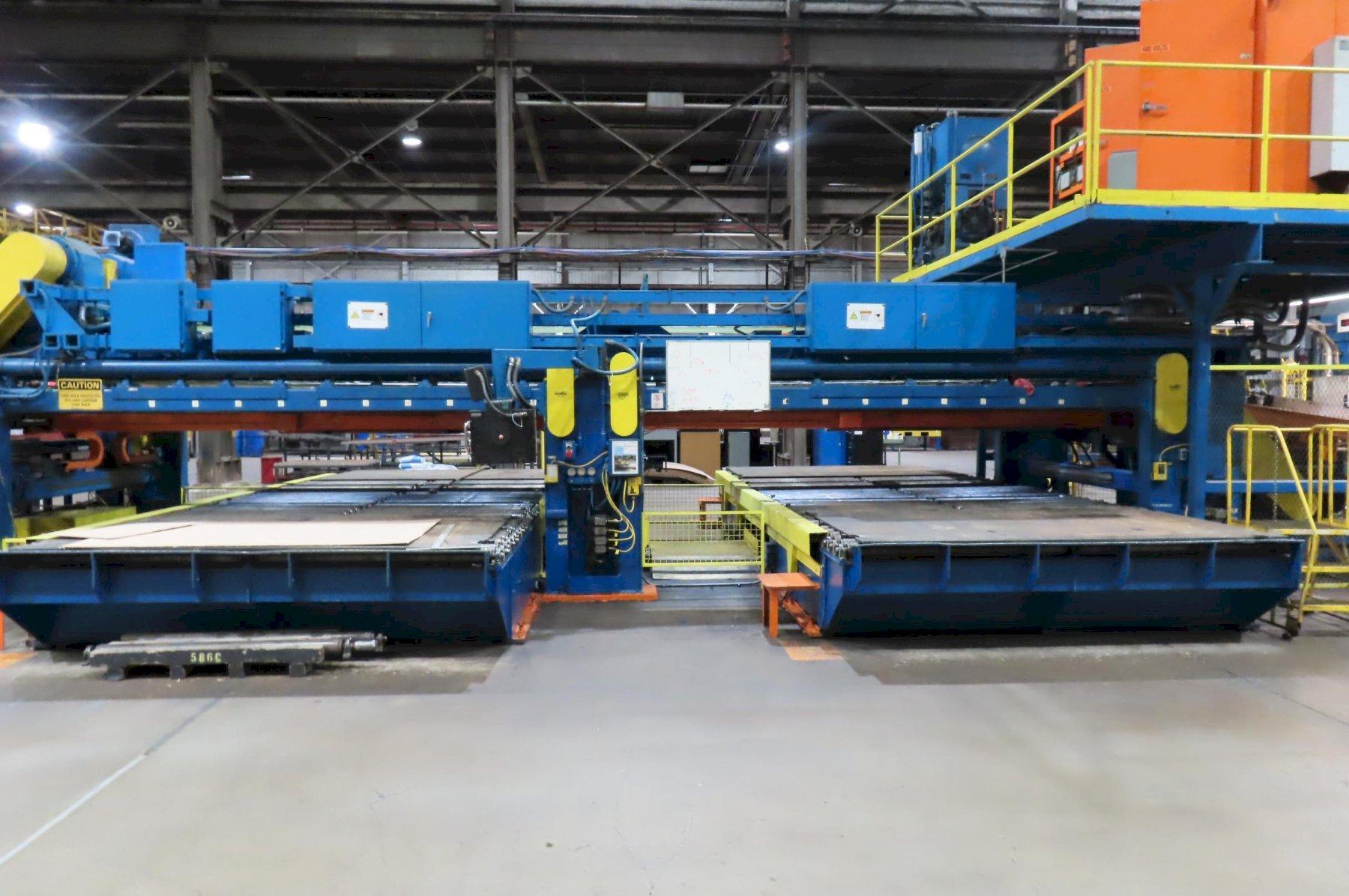

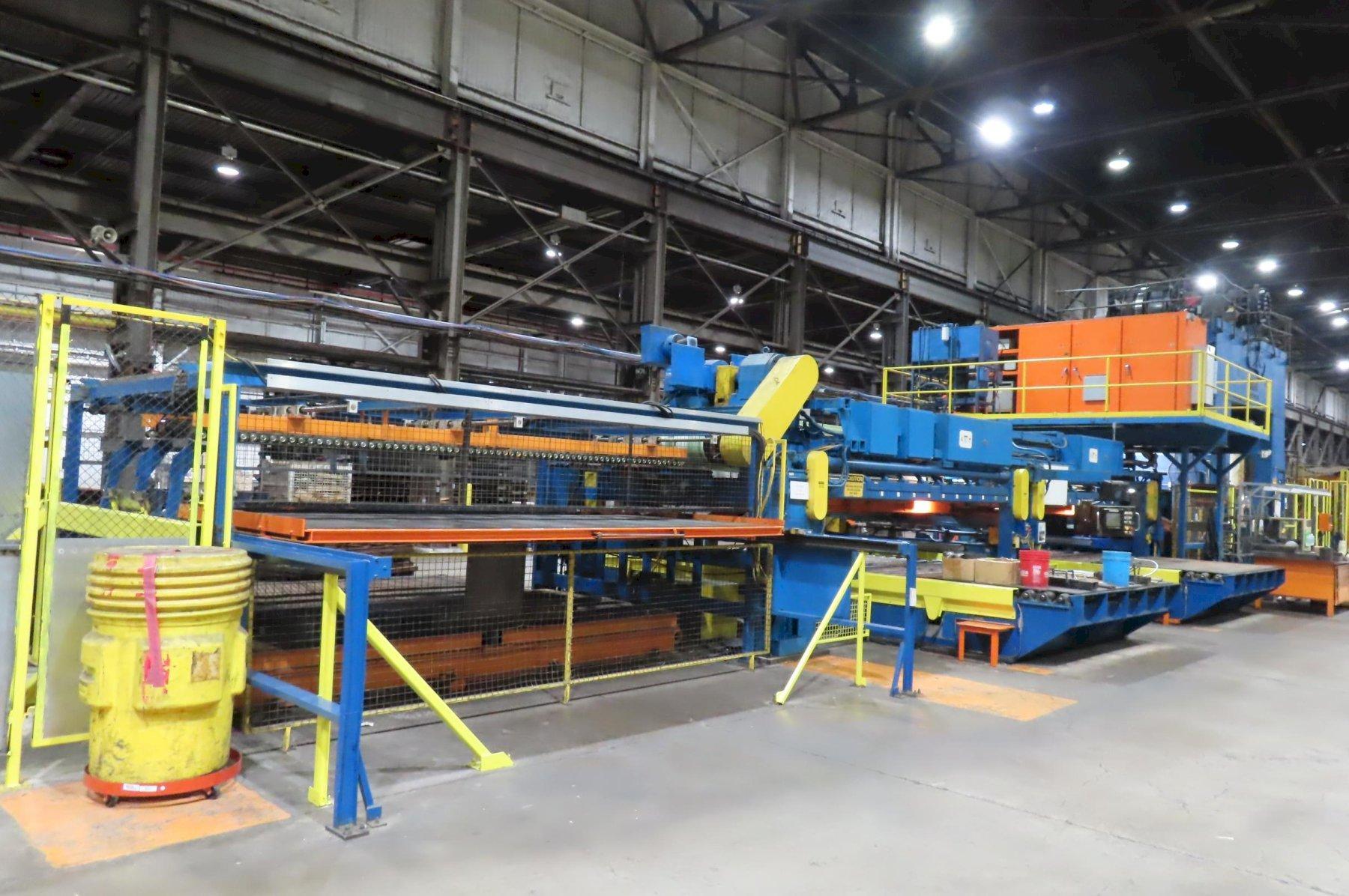

AFCO STACKING SYSTEM - EOL
Blank Length Range: 18”-170”
Max Stack Weight: 20,000#
Max Stack Height with Pallet: 25”
2 Station Stacker System
Floor Mounted Stacker Carts (no foundation)
Reject Station.
76" Wide (2000 mm) X 75,000 LBS (35 MT) X .100" Automatic Feed (AFCO)
Line Specifications
Coil Width: 24" to 76"
Coil Weight: 75,000 LBS 30 MT
Coil O.D.: 30" to 80"
Coil I.D.: 22" to 26" (24" with no pads)
Coil Thickness: .020" to 100"
Strokes Per Minute: Variable, 50 SPM
Line Speed: 300 FPM
AFCO FEEDLINE COMPONENTS (FOL)
• Coil Shuttle:
• Uncoiler:
o Double Stub Mandrel
• Peeler
• Entry Pinch Roll
• Crop Shear #1
• AFCO Washer
• AFCO HSS 50 MM (2") LEVELER
o Cassette Leveller
o Roll Diameter 76" x 2" (50 mm)
o 13 Roll Leveler o 6 High Backups
• Loop Thread Table
• Roll Feed
AFCO STACKING SYSTEM - EOL
Blank Length Range: 18”-170”
Max Stack Weight: 20,000#
Max Stack Height with Pallet: 25”
2 Station Stacker System
Floor Mounted Stacker Carts (no foundation)
Reject Station.
