Equipped With
Year 2003
Coil Width Range: 12"-74" (305mm-1880mm)
Coil Thickness Range: .012"-.135" (.3mm-3.43mm)
Max Coil Weight: 70,000#
Coil ID Range: 20"-24" (508mm-610mm)
Coil OD Range: 30.5"-76"
Sheet Stacking Width: 12"-74" (305mm-1880mm)
Sheet Stacking Length: 16"-120" (406mm-3048mm)
Max Stack Height: 30" (762mm)
Max Stack Weight: 25,000#
U.T.S Maximum 70,000 PSI
Max. Yield Strength 50,000 PSI
Complete with the Following Components:
Three Station Coil Staging Area
Pit Type Entry Coil Car

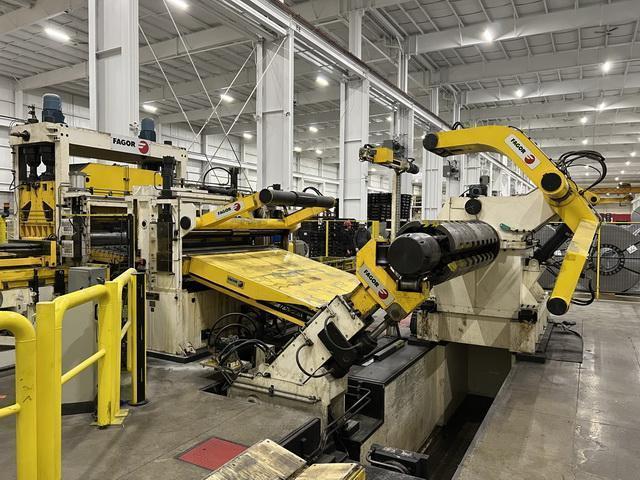

Uncoiler with Outboard Support Arm
Peeler Table
Pinch Rolls
Crop Shear

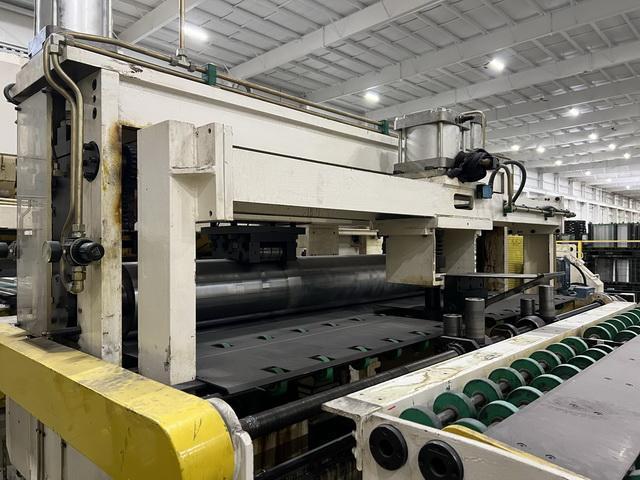

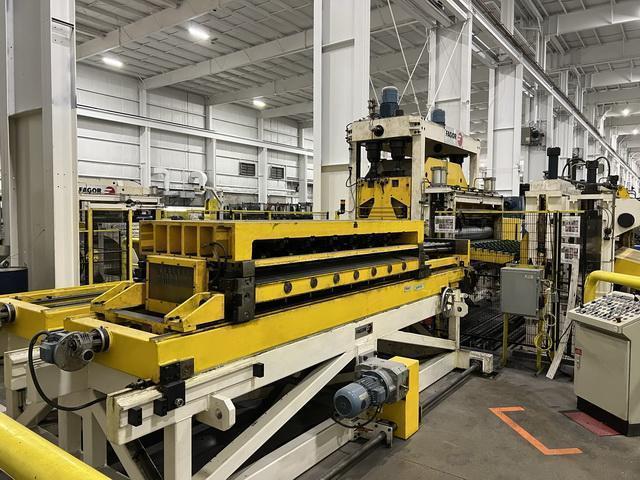

Cassette Leveler with Two Cassettes
Conveyor
Looping Pit
Roll Feeder
Belt Conveyor

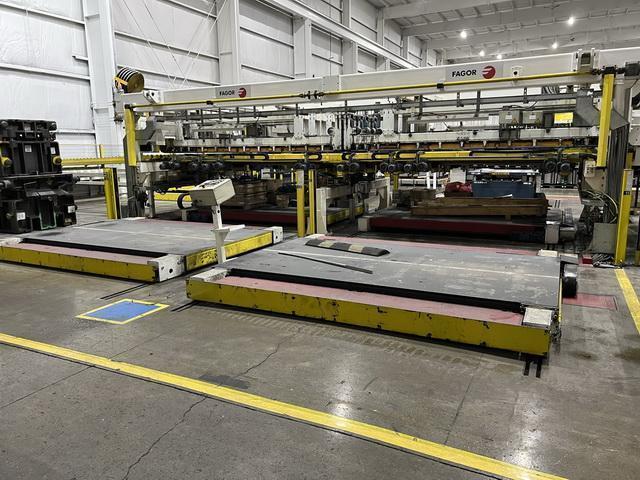

Magnetic Stacker with Two Stations
ABB and Yaskawa Drives
