Brand
Not Specified
Model
Stock #
604849
Condition
Used
Year
Location
Wayne, Michigan
United States
GENERAL LINE SPECIFICATIONS:
MANUFACTURER - AUTOMATIC FEED COMPANY
YEAR - 1989 (NEW CONTROLS UPGRADE 2020)
TYPE - TRAPEZOID CUT TO LENGTH LINE
MATERIAL - 0.020" - 0.100"
YIELD STRENGTH - 25,000 PSI - 40,000 PSI
DEPENDING ON WIDTH & THICKNESS A HIGHER YIELD STRENGTH IS FEASIBLE. CONTACT
OUR OFFICE FOR FURTHER INFORMATION
WIDTH RANGE - 24" - 76"
TRIM WIDTH - 74"
ID RANGE - 19" - 25"
OD RANGE - 36" - 84"
LINE SPEED - 300 FPM
SHEAR SPM - 18 - 70
SHEAR ANGLE CUTS - 30 DEGREES MAXIMUM +/-
SHEAR STROKE - 6"
SHEAR SHUT HEIGHT - 30"
STACKER WIDTH RANGE - 24" - 74"
STACKER LENGTH RANGE - 24" - 168"
MAXIMUM STACK WEIGHT - 20,000#
MAXIMUM LIFT & TRANSPORT WEIGHT - 40,000#
MAXIMUM STACK HEIGHT - 24" (INCLUDING DUNNAGE)
LINE DIRECTION - RIGHT TO LEFT
GENERAL LINE COMPONENTS:
(4) STATION TRAVELING COIL STORAGE RACK
V-TYPE TRAVELING COIL CAR W/ HYDRAULIC LIFT
ANTI-TIP GUIDES
DUAL STUB MANDREL EXPANDING UNCOILER
AC MOTOR - 125 HP, 1750 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER
HOLDDOWN ROLL & PEELER ASSEMBLY
PINCH ROLL AND ENTRY CROP SHEAR ASSEMBLY W/ SCRAP CONVEYOR
EDGE TRIMMING UNIT
BUTECH MDL. SC-250 SCRAP CHOPPERS
(4) AC MOTORS - 30 HP, 1750 RPM & (3) SERIES 2400 MODULAR FLUX VECTOR AC
INVERTERS
(FOR THE PINCH ROLL, SCRAP CHOPPER, ENTRY PINCH ROLL, AND EXIT PINCH ROLL)
WASHING & RINSE UNIT WITH HIGH PRESSURE PUMP & FILTER SYSTEM
19 ROLL 5HI PRECISION LEVELER
1.9375" ROLL DIAMETER
76" WIDTH
AC MOTOR - 250 HP, 1150 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER
LOOPING PIT #1 & INSPECTION TABLE
ECT STRIP OILER
PINCH ROLL ASSEMBLY
LOOPING PIT #2
THREADING TABLE
DIGITAL CONTROLLED ROLL FEED
AC MOTOR - 100 HP, 1000 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER
UPCUT SHEAR
AC MOTOR - 30 HP, 0-1750 RPM

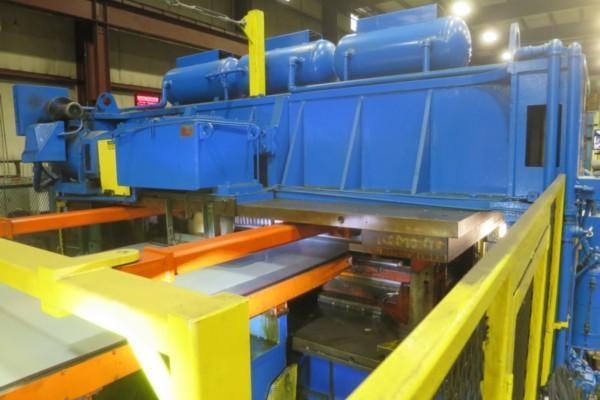

OSCILLATING/TRAPEZOID SHEAR ASSEMBLY
DIES STYLE - CASSETTE TYPE - MULTIPLE DIES AVAILABLE
AC MOTOR - 75 HP, 1150 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER
BELT RUNOUT CONVEYOR
AC MOTOR - 30 HP, 1750 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER FOR
EACH STACKER
MAGNETIC BELT CONVEYOR & TWO STATION MAGNETIC STACKER
AC MOTOR - 30 HP, 1750 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER FOR
EACH STACKER
NEW MAGNET SYSTEM INSTALLED IN 2020 WITH FUTURE AREAS FOR VACUUM CHAMBERS
REJECT PILER
LEFT AND RIGHT DISCHARGE TRANSFER CONVEYOR
AC MOTOR - 15 HP, 1750 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER

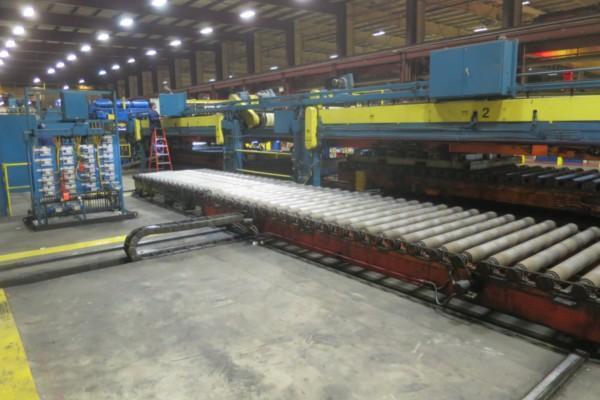

100' + RUNOUT OUT CONVEYOR ON RIGHTHAND (R-L DIRECTION) OF STACKER WITH SCALES
EXTENSIVE ELECTRICAL AND CONTROLS UPGRADE IN 2020 INCLUDING:
NEW ALLEN BRADLEY PLC UPGRADE FOR LINE AND STACKER WITH CONTROLOGIX WITH
GUARDLOGIX PROCESSORS & DYNICS TOUCHSCREENS
NEW COIL LINE & STACKER ADJUSTMENT FEEDBACK DEVICES
AUTOMATIC FEED COMPANY'S AUTOMATION INTEGRATION MANAGER (AIM) VISUAL BASIC
OPERATOR INTERFACE
NEW SAFETY DEVICES ON COIL LINE AND STACKER
108 NEW MAGNET ASSEMBLIES FOR THE STACKER AND ALLOW ROOM FOR VACUUM CHAMBERS
IN THE FUTURE
UNICO AC SERVER DRIVES INTEGRATED THROUGHOUT THE LINE
UNICO SERIES 4000 SERVO DRIVE CONTROLLERS THROUGHOUT THE LINE
PROVIDE AUTO THREAD CAPABILITY STARTING AFTER THE CROP SHEAR
