Overview
- Make
- MOSSINI
- Model
- PDM/4B/1000
- Year
- 2013
- Condition
- Very Good
- Stock #
- 502024
Specifications
- Tonnage
- 1000
Spec Sheet
H FRAME MECHANICAL PRESS - Single Action
MOSSINI 1000 TON
TYPE: PDM/4B/1000
SERIAL NUMBER: 0900/13
YEAR: 2013
KINEMATICS: ECCENTRIC
RATED CAPACITY AT 8 mm: 1000 Tons
NUMBER of connecting rod: 4
SLIDE STROKE: mm 350
SLIDE ADJUSTMENT: mm 300
CONTINUOUS SPEED (variable): spm 20 - 55
SHUT HEIGHT, from top of bolster, SDAU: mm 1450
SLIDE DIMENSIONS (L-R x F-B): 4500 X 2500 mm
FRONT-T-TRACK MOVING BOLSTER DIMENSIONS : 4500 X 2500 mm
MAIN DIMENSIONS
CLEARANCE BETWEEN UPRIGHTS (L-R): 4700 mm
CLEARANCE BETWEEN UPRIGHTS (F-B): mm 2100
MOVING BOLSTER H. : mm 600
WEIGHT OF THE PRESS : Kg.280.000

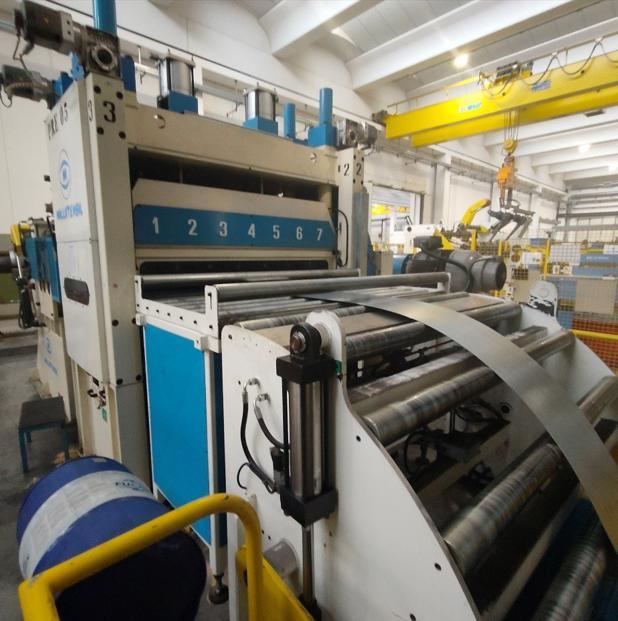

EQUIPMENT:

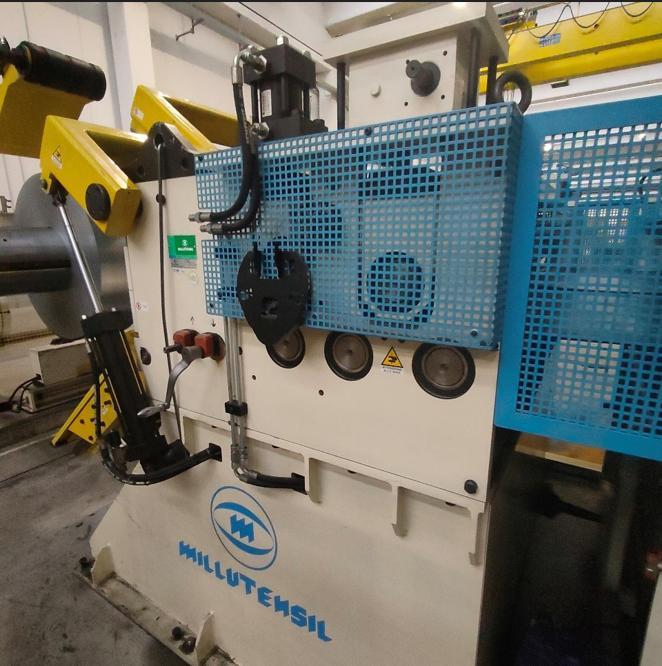

MILLUTENSIL 2013
YEAR2013
MAX SHEET WIDTH : mm.1850
MAX SHEET THICKNESS : mm.4
COIL WEIGHT CAPACITY : Kg.25.000
