Brand
Not Specified
Model
LC-30M-72
Type
Feeders
Stock #
501529
Condition
Used
Year
Location
Wayne, Michigan
United States

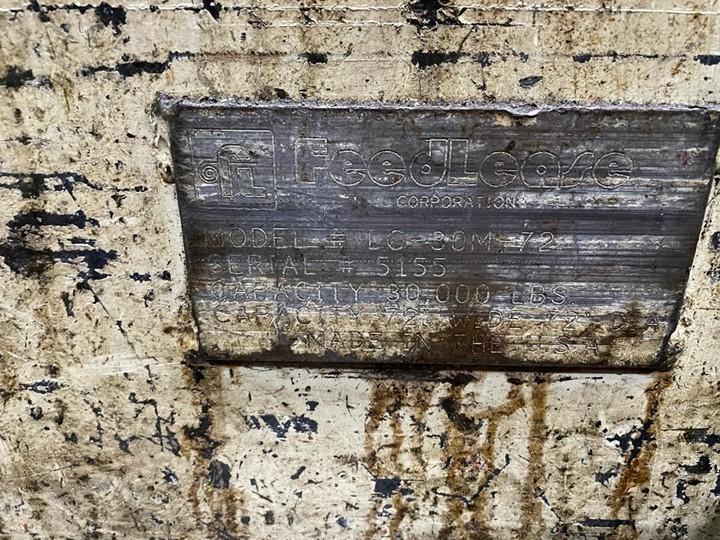

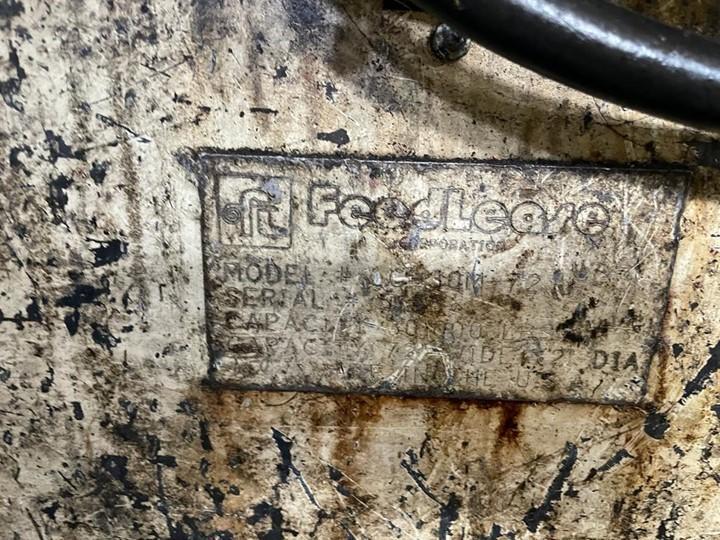

Model: LC-30M-72
Capacity-Weight: 30,000lbs
Capacity-Width: 72in
Capacity-Diameter: 72in

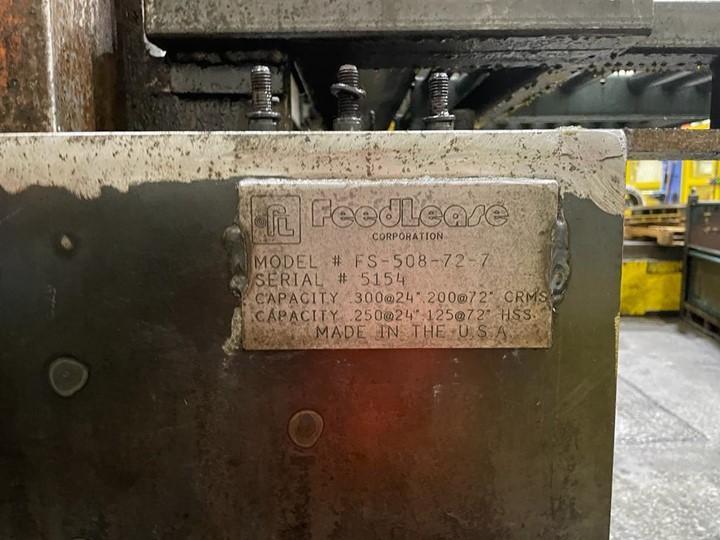

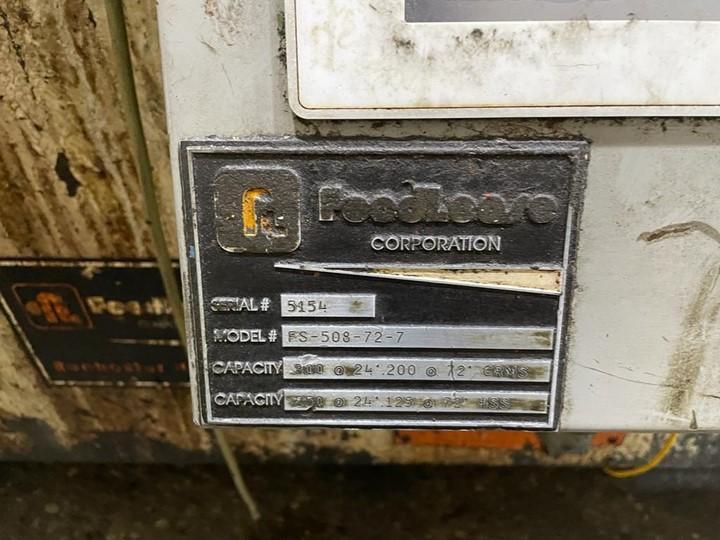

Capacity: 0.300 @ 24’’.200 @ 72’’ CRMS
Capacity: 0.250 @ 24’’.125 @ 72’’ HSS
Including:
-Special vertical lift-20”
-6 button remote pendant- UP/DN. IN/OUT, EXP/CONT.
-Powered V-Nest Rolls
-Narrow coil anti-tip arms
Direction: Left to right
Plant voltage: 440
Passline Height: 46” +/-5
Voltage: 460/3/60 VAC
Reel Info:
Expansion Range: 22-26
Manual Expansion: NO
Hydraulic Expansion: YES
Brake Arrangement:
Electric Circuit # SO-11234 5154-5155
Air Circuit # AC-5154-55
Hydraulic Circuit # HY-315-5154-55 -15 GPM
PLC Model # AB1400
PLC Program # CB-11234-AB1400
Standard Reel Accessories:
Hydraulic Thread Drive: Yes (See Notes)
Hold Down Arm/Width: 10”
PWD. Roll on HAD: Yes, Hydraulic
Clock Spring Guard: Yes
Auto Expand On/Off: Yes
Coil Width Scales: Yes, 4 arms

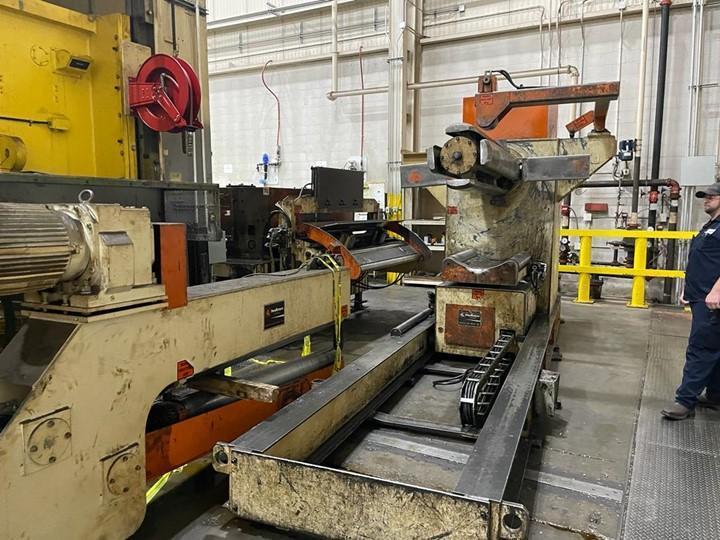

Load Car Info:
Model # LC-30M-72
Vertical Lift: 20” , Special
Narrow Coil Supports: Standard
Travelling Reel: No
Powered V-Nest Rollers: Yes
Load Car Accessories:
6 Button Remote: UP/DN. IN/OUT, EXP/CONT.
Notes:

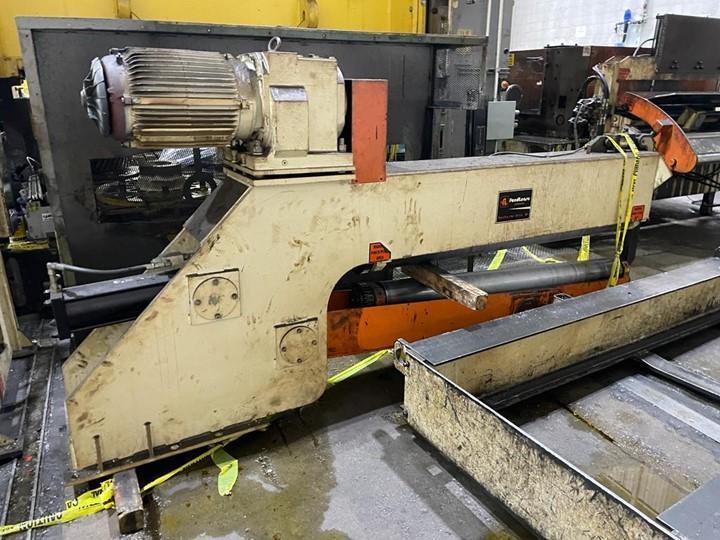

40 HP General Purpose AC Motor on Pull-Off Rolls
Flender Reducer # Z128-G2004 32.11:1 Ratio on Pull-Off Rolls
Thread Drive used as Spindle Pay Off Mode for Light Gage
Thread Drive speed up to 10 RPM
