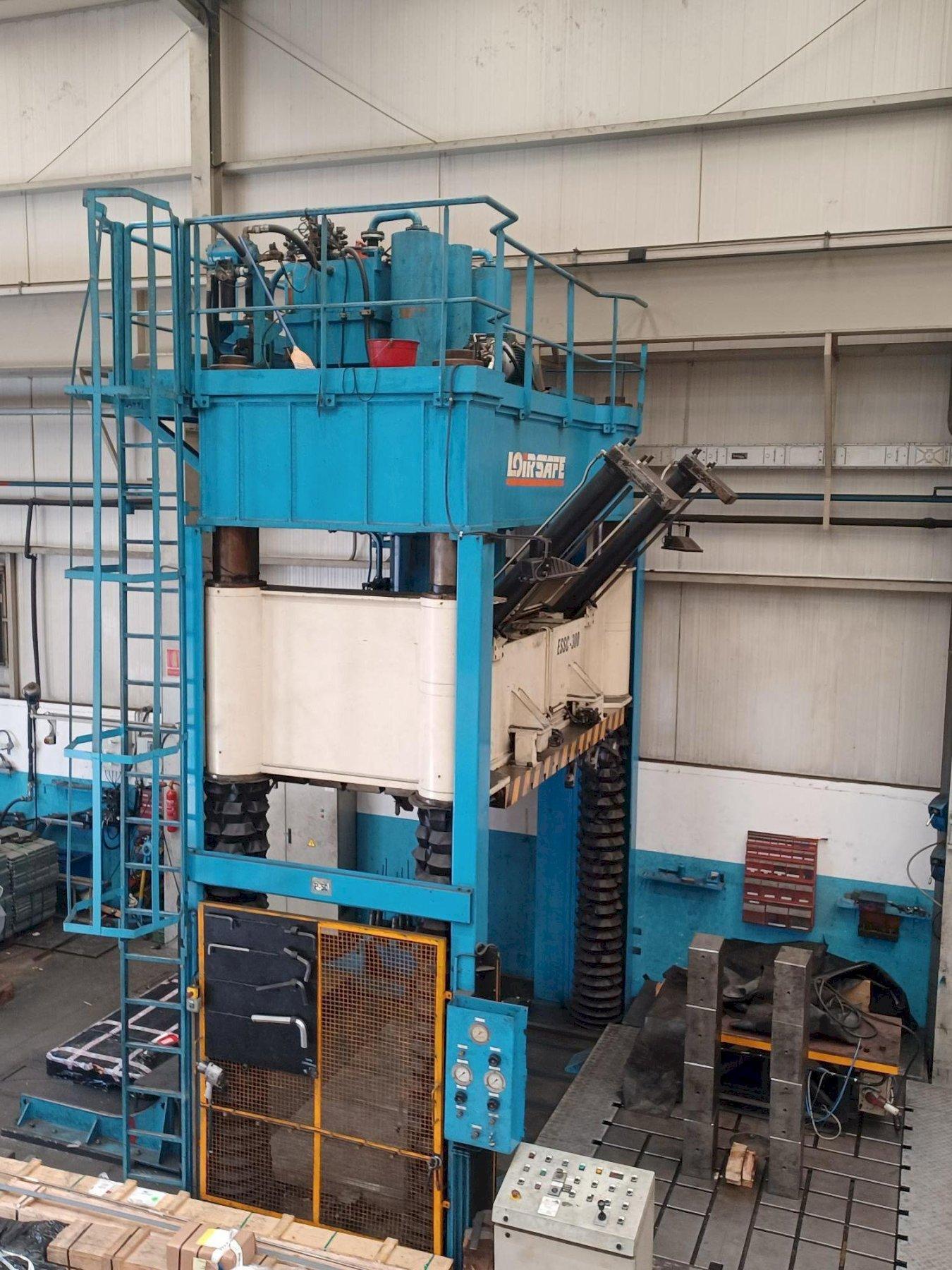

YOM: 1997
Maximum tangible force: 0-300
Return force: 60
Number of working cylinders:2
Maximum opening between table and plate: 2,700
Maximum travel of the moving plate: 2,200
Maximum load on the mobile plate: 18,000
Maximum load on the table: 42,000
Table dimensions: Front- Left to right: 3.000; Back - Front to back: 2.000
Maximum travel of the lower table: 2.400
Useful dimensions of the mobile plate:
Front- Left to right: 3.000
Back - Front to back: 2.000
Guide height:1.200
Diameter of the columns: 300
Table plate thickness: 200
Plate thickness of the moving plate: 150
Tilting angle of the mobile plate: 155
Table and plate flatness: 0,08
Parallelism between table and plate: 0,10
Approximate weight of the machine without die: 77.000
Speeds of the upper moving plate in work:
Approach :60
Work: 7
Return:
Slow from release to maximum pressure: 35
Quick: 60
Lower table travel speeds:
Exit: 60
Entrance: 60
Maximum die magnitudes:
Dimensions: Front: 3.000
Depth: 2.000
Maximum weight:
Mobile part:18.000
Total: 42.000
Electrical connection:
Installed electrical power: 25
Electric tension: 400V 3 AC
Frecuency: 50
Total intensity : 50
Main motor intensity: 44
Cable section: 16
Service pressure: 16
Relative humidity less than: 6
Ambient temperature between:10 & 40 C
