Bed Size: 5400mmx2400mm

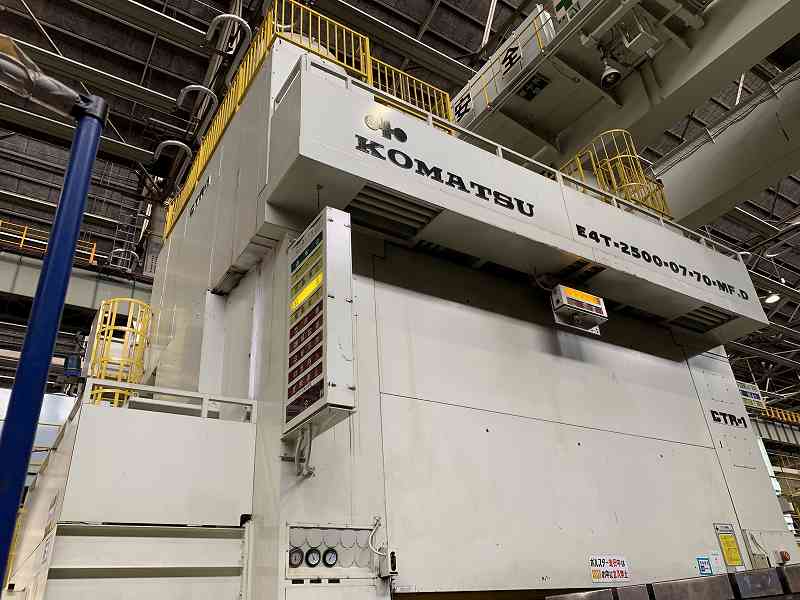

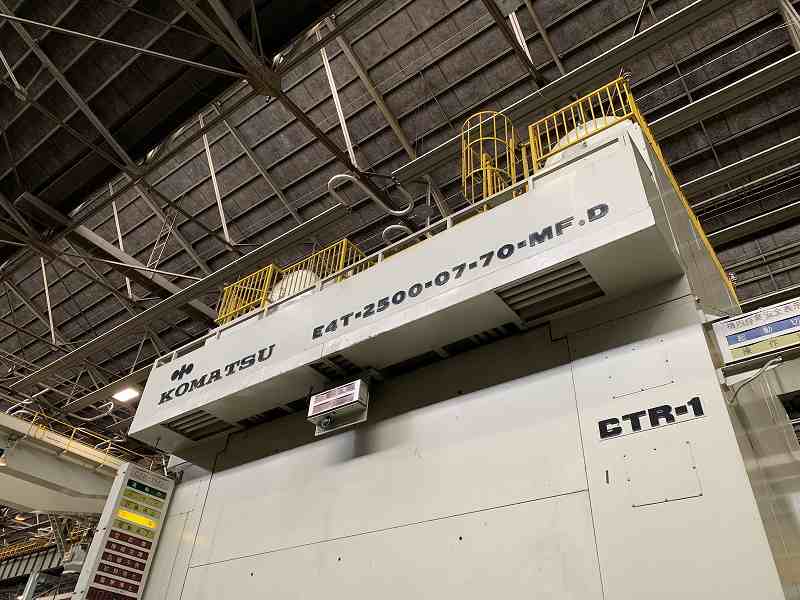

2500ton Transfer Press
Make: KOMATSU(Japan)
Model: E4T2500
Year: 1990
Stroke: 650mm
Die height: 1250mm
Slide adjustment: 225mm
SPM: 9-25
Slide: 5400mmx2400mm
Bolster: 5400X2400mm
Bolster thickness: 200mm
Balancer capacity: 30ton
DC: 355kW
(Transfer equipment)
7 stations
Feed height: 700, 780mm
Feed stroke:550mm 700mm 1000mm
Clamp stroke: 250mm
Lift stroke: 250mm
(Die cushion)
Type:Pneumatic type(Air)
Diecushion stroke: 200mm
Pad size: 480mm x 1780mm
(Diecushion capacity)
No.1 120ton
No2. 80ton
No.3 60ton
No. 5,6,7 5ton
(TRANSFER EQUIP)
7 STATION
1station--120Ton, 2station-80Ton, 3station-60Ton, 5,6,7station-50Ton
Pad size: 1780x480
