Overview
- Make
- SUTHERLAND
- Model
- SP2-D-250-96-48-10
- Year
- 2002
- Condition
- Good
- Stock #
- 502028
Spec Sheet

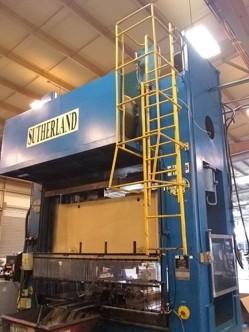

250 tons 96" x 48" Sutherland Stright side press
Model SP2-D-250-96-48-10
Capacity Center Drive 275 U.S. Tons
Stroke Length 10”
Stroke per Minute/variable 30 to 60 SPM
Rating Point A.B.C. .25”
Die Height on Top of Bolster S.D.A.U. 24”
Die Height Adjustment 10”
Slide Area 96” x 48”
Bolster Area 96” x 48”
Bolster Thickness 7.67”
Floor to Bolster 50”
Side Window Opening 31.5” x 34”
Floor Space Required 143” x 81”
Overall Height 221”
Weight Approximate 98,000 Lbs
Main Motor 40HP
Slide Adjustment Geared Motor 2HP
Automatic Oil Lubrication Motor 0.5HP
Air Pressure Required 100PSI
Air counter Balance Capacity 6,600 Lbs

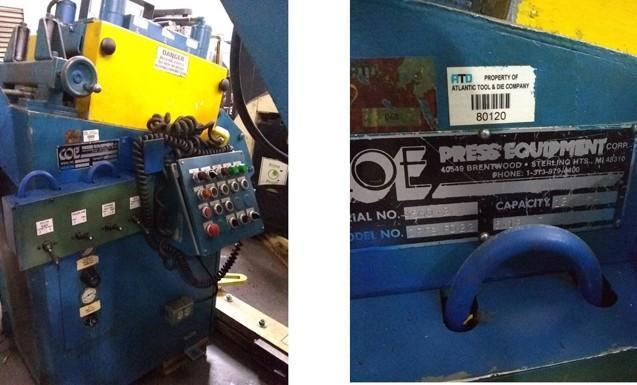

Voltage 480 VAC 60Hz 3Phases6000 lb. Coe Press Equipment #CPR-PO-6018 / CPPS-PO-225-18 / CPRF-318, servo feed line, 18" x.125"stock, manual expansion, 6 keepers

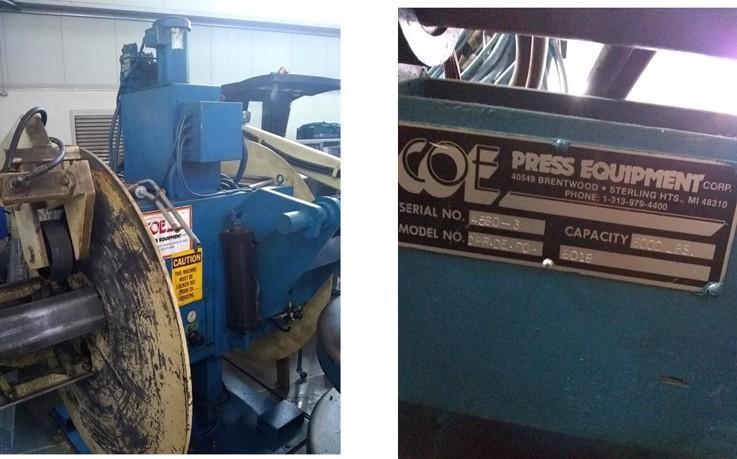

Feedline6,000 # x 18-inch Pull-off Coil Reel
