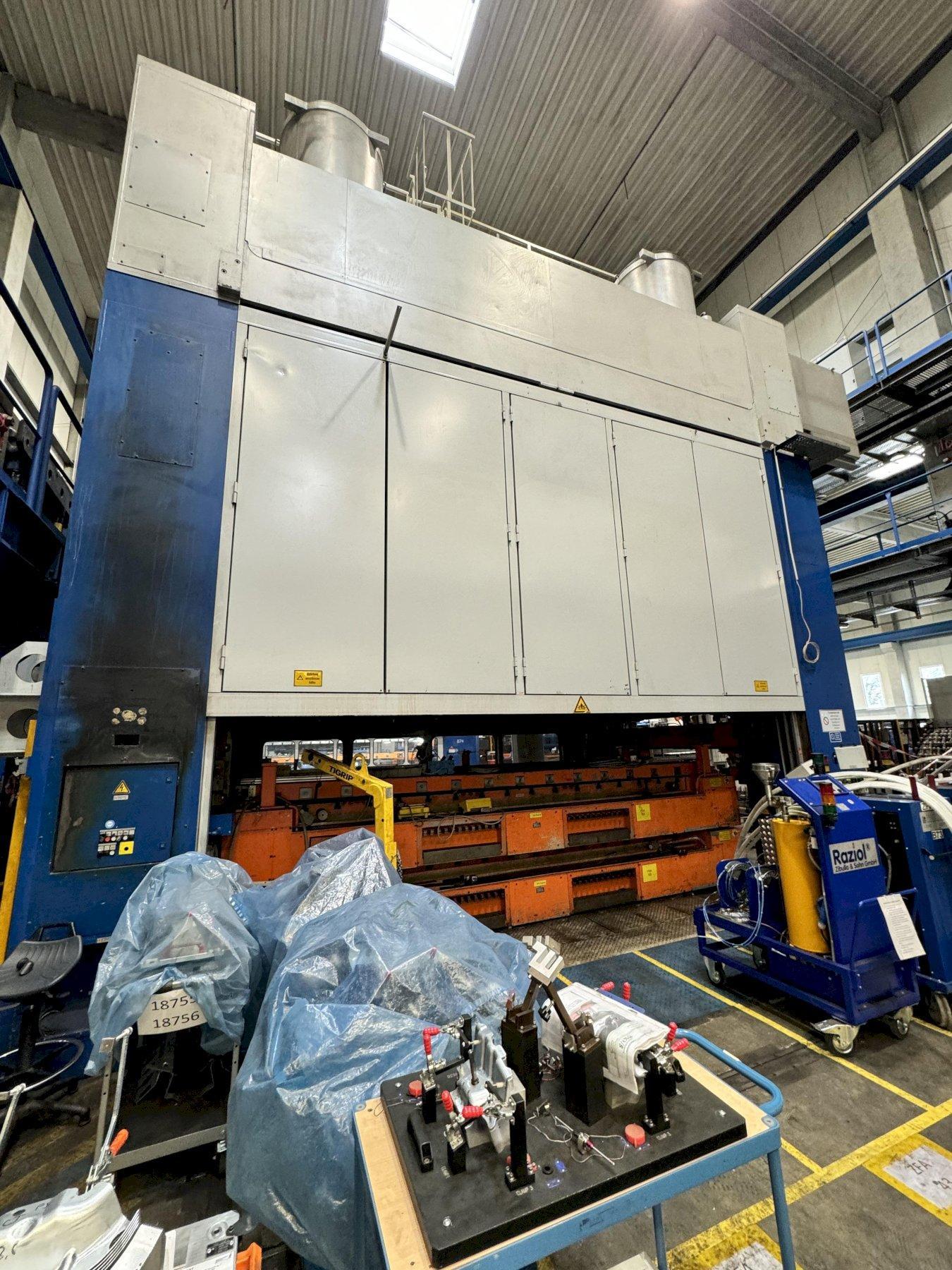

Equipped With
Bed Size: 2100 x 5100 mm
SPM: 10-35
Stroke: 600 mm
Adjustment: 300 mm
Tool mounting height: 800 - 1100 mm
Table height above floor level: 600 mm
Max weight of tool: 50000 kg
Equipped with Transfer:
Transfer Feed: 0-1000 mm
Transfer rails – distance min.-max.: 600-2340 mm
Zero point height: 500 mm
Transfer stroke: 200 mm
Max. mass of the gripper and part: 150 kg
Equipped with feedline:
Coil width: 200-1300 mm
Coil thickness (at max. coil width): 0.6-3.0 mm
Coil cross section at 600N/mm²: 2600 mm
Coil infeed height: 600 (+/-100) mm
Tensile strength: 370 - 600 N/mm²
Outer coil diameter: 800-2250 mm
Inner coil diameter: 500-610 mm
Max coil weight: 25t
