Equipped With

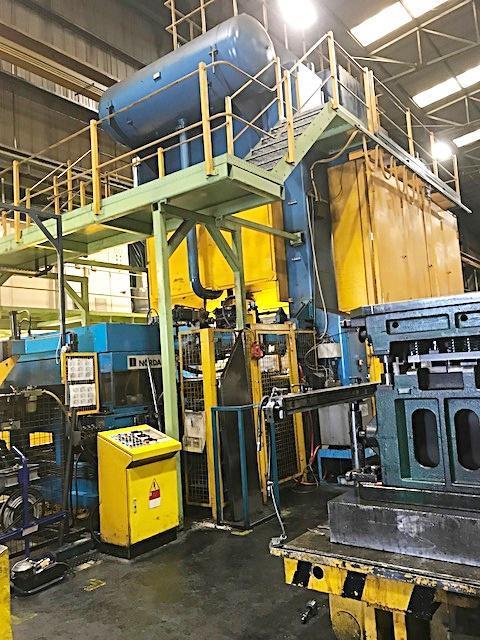

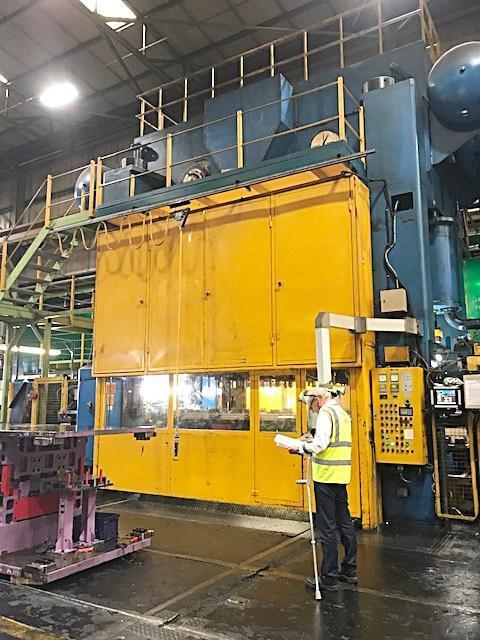

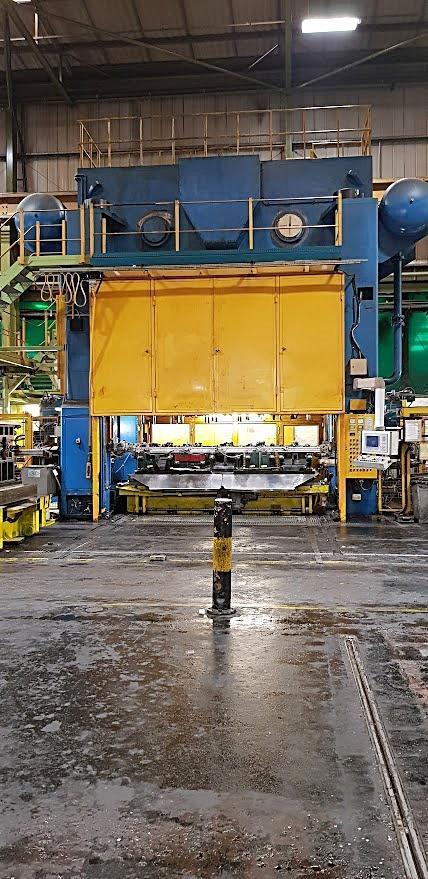

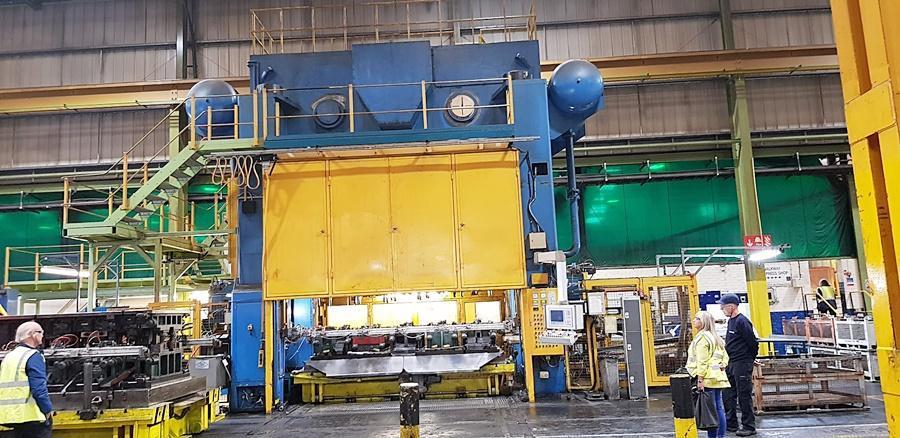

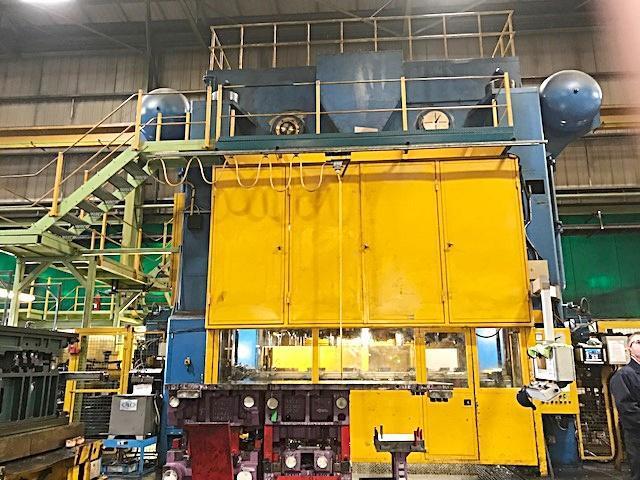

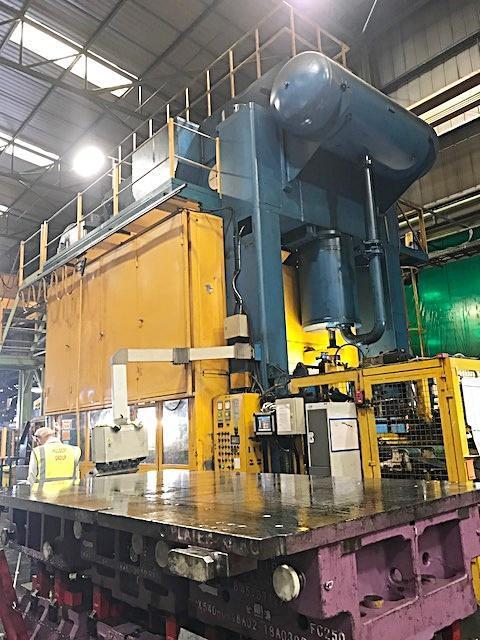

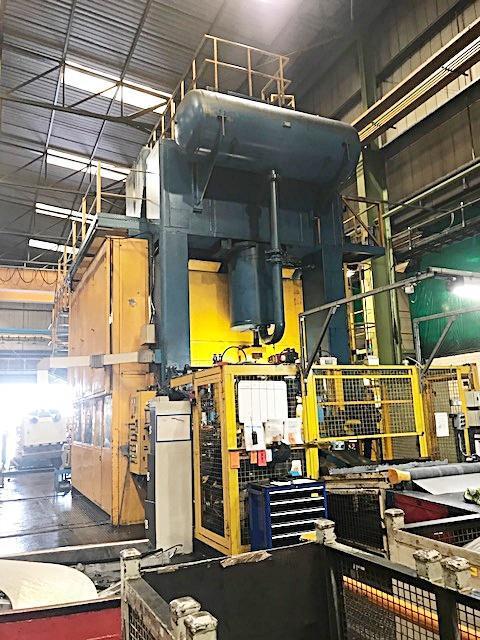

FAGOR, Mechanical Transfer Press with Coil Feed, new in 1994
Bed Area: 4300 x 2400 mm
Slide Area: 4300 x 2400 mm
Stroke: 720 mm
Shut Height (min): 800 mm
Shut Height (max): 1200 mm
Speed: 10 - 20 spm
Adjustment: 400 mm
Approx. height above floor: 8296 mm

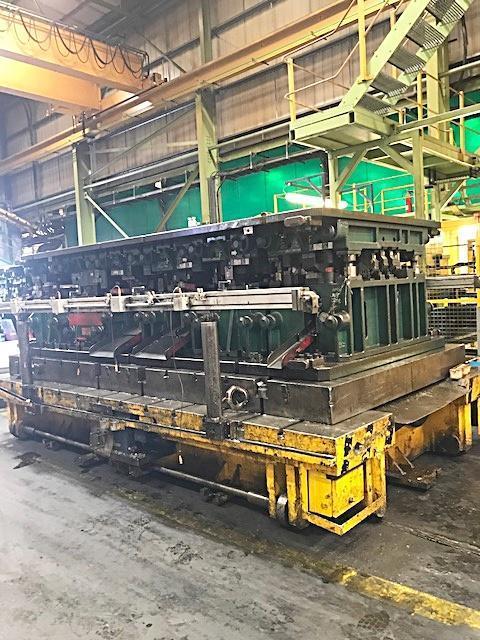

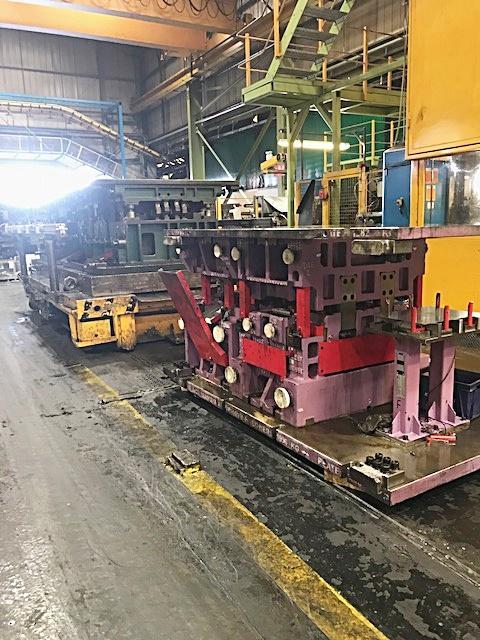

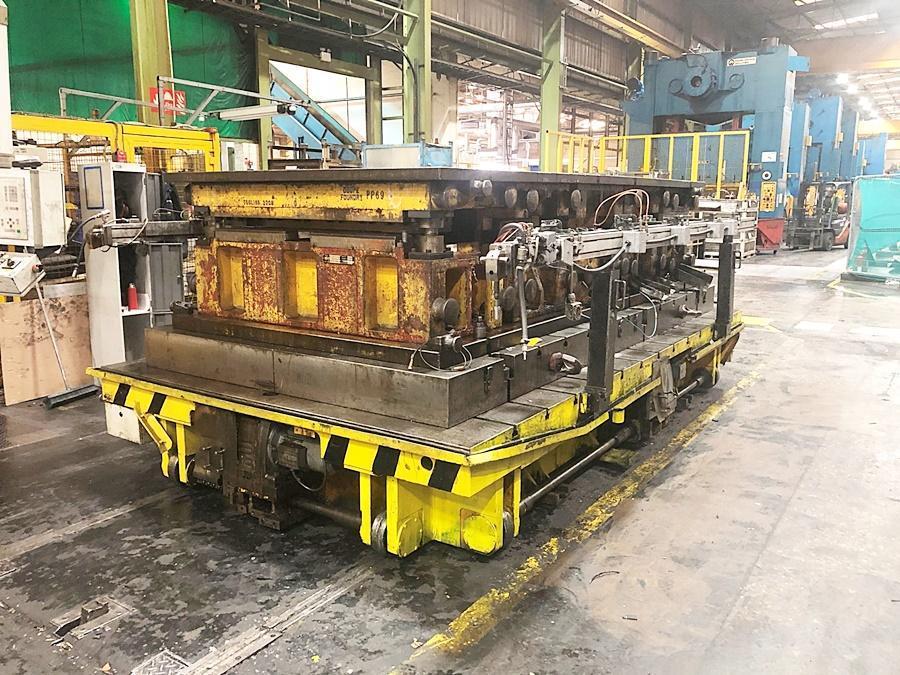

Features Coil feed, 2 moving bolsters F-B onto t-track, hydraulic clamping on slide
Manual clamping on bolster
Transfer:
Max transfer beam out 2352 mm
Max transfer beam in 952 mm
Distance from bolster to transfer rail: 765 mm
Feed height: 760 mm
Pitch: 625, 800, 1000 Ckzuz9Rt
Clamp in/out: 225 mm Lift 0 - 200 mm
Height of exit conveyor above bolster: 660 – 770 mm

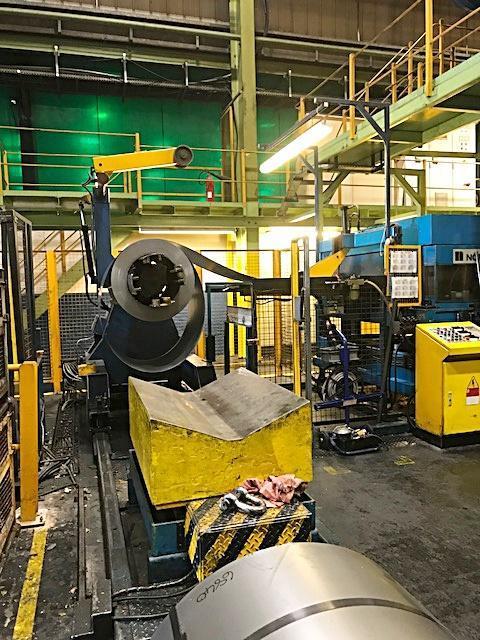

Coil Feed Max coil weight: 5000 kg
Max coil width: 1465 mm
Coil o/d: 1550 mm
Coil i/d: 508 mm
Material thickness 0.5 – 1.5 mm
Max load pitch: 0 – 1000 mm
Material feed height over bolster: 760/850 mm
